CASE STUDY

17245-17246: PROJECT FEEDING DIFFERENTIAL PINION DRIVE SHAFTS INTO PRESS

Feedall Model

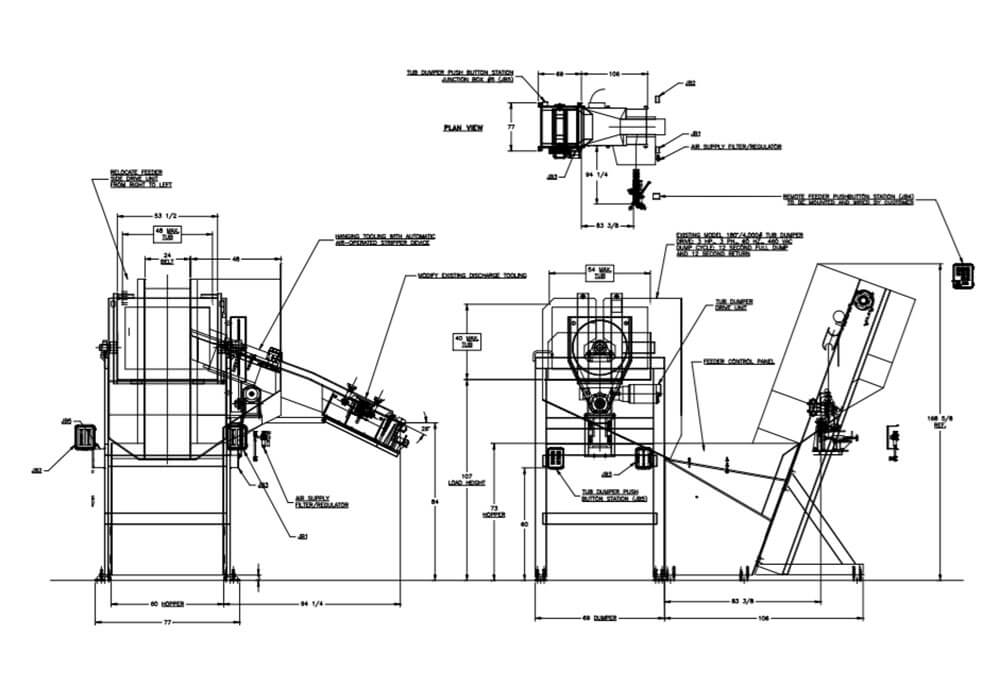

Model 2700-HD Elevating Hopper Feeder w/180º Roll-Over Tub Dumper

APPLICATION

Feed from a random loaded, floor mounted hopper. Pinion Shaft Forgings will be elevated from hopper via a cleated belt and orient forgings with stems down into adjustable hanging rails to an air-operated escapement device. This device will escape forgings one at a time into a probe check station that will divert forgings without forged center into a reject chute. The forgings with forged centers will feed into discharge rails to an air-operated transfer device that will feed the existing transfer system on the Nib & Center Press.

WIDTH

24” Wide Elevating Belt

DRIVE

3 HP/AC Motor

PARTS FED (SIZE)

Pinion Shaft Forgings (2.30”-6.00”Ø x 7.00”-16.00” Lg.)

FEED RATE

10 Parts/Minute
