17225: PROJECT FEEDING STEERING RACKS

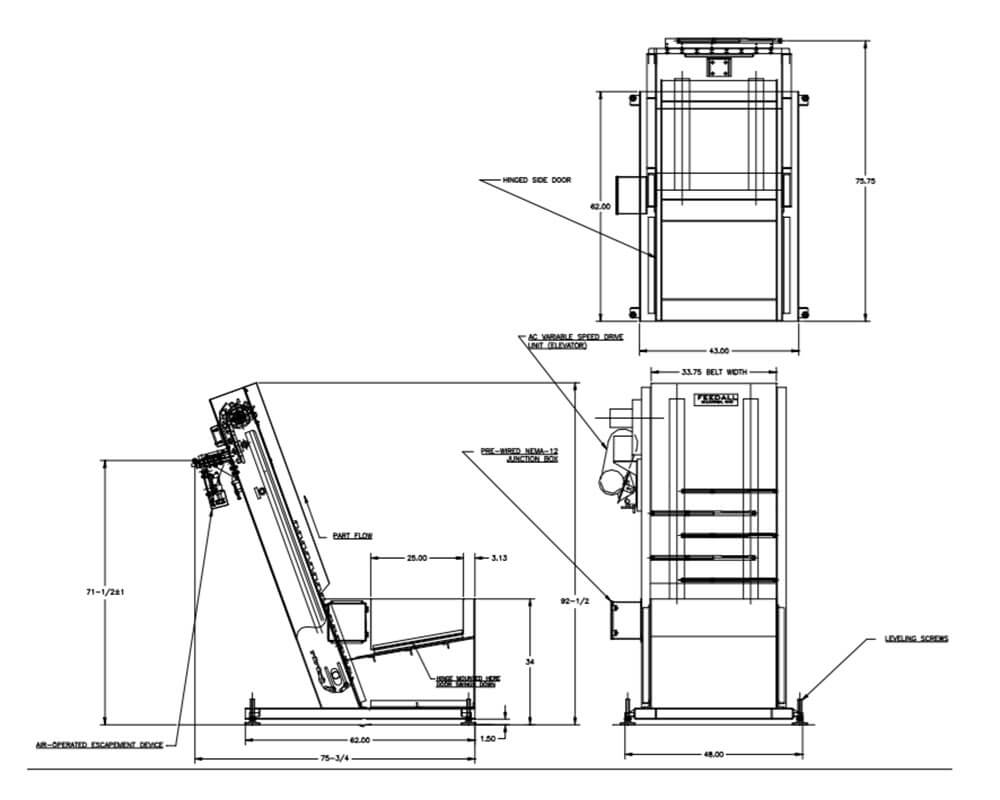

Model 2233 Elevating Hopper Feeder
Feed from a random loaded, floor mounted hopper. The Steering Racks will be elevated from the hopper via a cleated belt and deposited onto a rear mounted accumulation ramp. An air operated escapement device will load one part at a time onto customer supplied rear mounted horizontal conveyor.
WIDTH33” Wide Elevating Belt
DRIVE3/4 HP/AC Motor
PARTS FED (SIZE)Steering Racks (0.986”-1.182”Ø x 23.00”-32.00” Lg.)
FEED RATE6 Parts/Minute
