CASE STUDY

17128: PROJECT FEEDING TAPERED ROLLER BEARING RACES INTO CENTERLESS GRINDER

Feedall Model

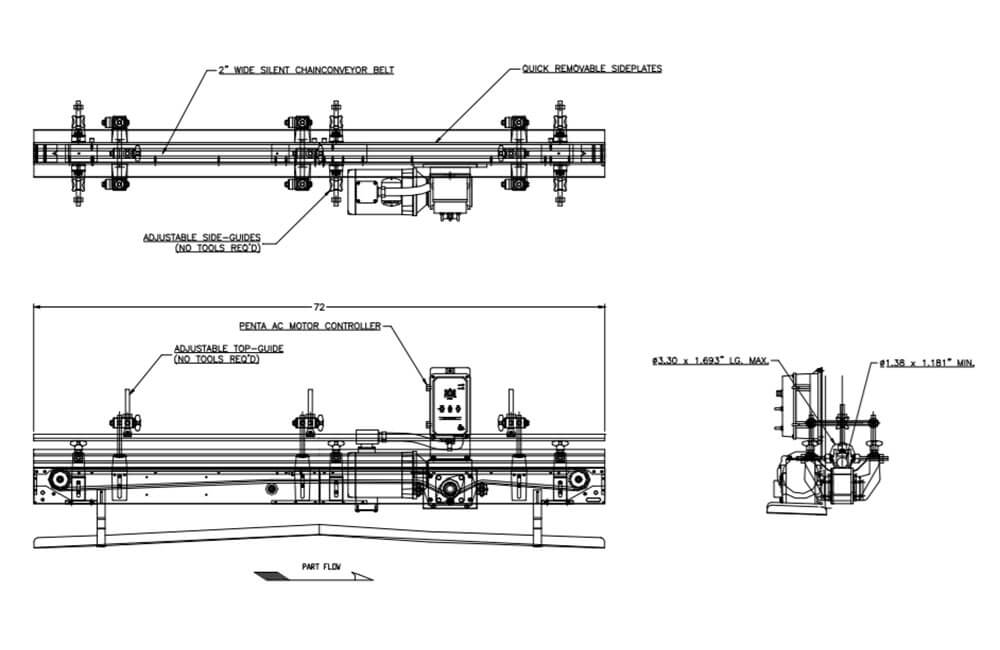

Model 1650-2SC-72 Intermediate Conveyor

APPLICATION

Convey Outer Race Bearing Cups from the workrest of a Koyo centerless grinder to the workrest of another.

WIDTH

2” Wide Silent Chain

DRIVE

1/4 HP/AC Motor w/Variable Frequency Controller

PARTS FED (SIZE)

Tapered Roller Bearing Cups (35mm-84mmØ x 30mm-43mm Lg.)

FEED RATE

2,100 Parts/Hour (35 Parts/Minute)
