CASE STUDY

17107: PROJECT FEEDING CARBIDE BLANKS INTO CENTERLESS GRINDER

Feedall Model

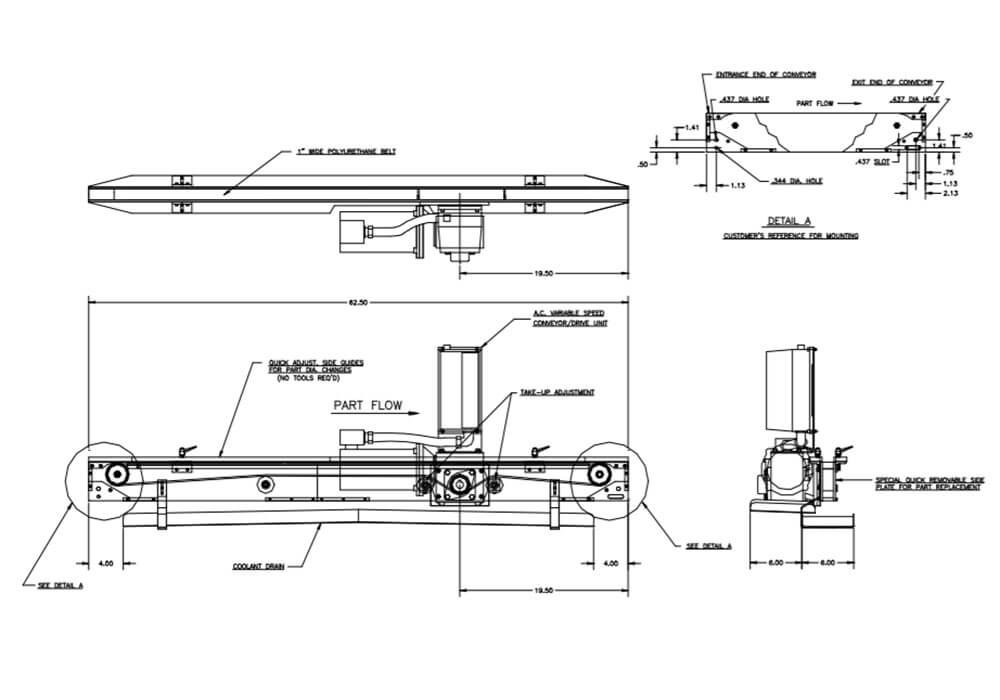

Model 1650-1PB-62-1/2 Intermediate Conveyor

APPLICATION

Convey Carbide Blanks between the workrest of two CINCINNATI 320-12 Centerless Grinders

WIDTH

1” Polyurethane Timing Belt

DRIVE

1/4 HP/AC Motor w/Variable Frequency Controller

PARTS FED (SIZE)

Carbide Blanks (0.25”-1.00”Ø x 1.00”-6.00” Lg.)

FEED RATE

1-50 Feet/Minute
