CASE STUDY

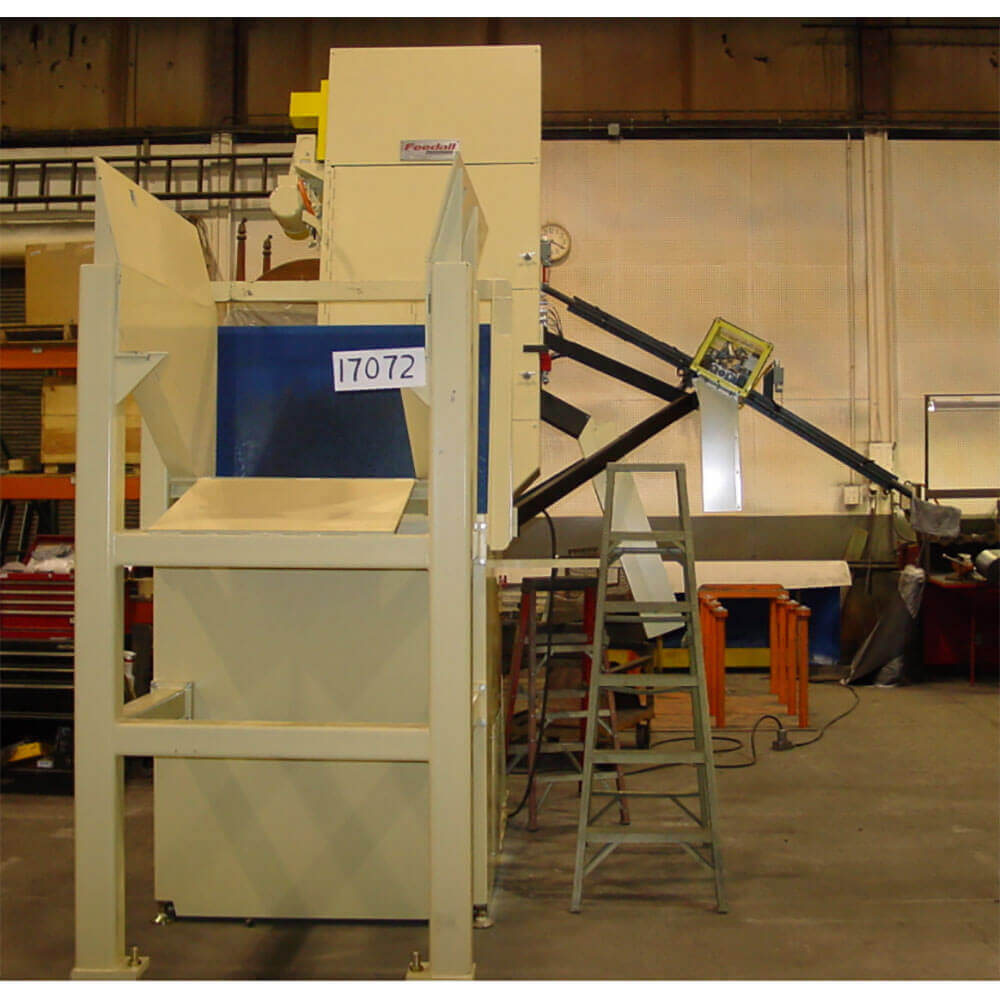

17072: PROJECT FEEDING DIFFERENTIAL PINION SHAFTS INTO BROACH

Feedall Model
Model 2500-D Elevating Hopper Feeder

APPLICATION

Feed from a random loaded, floor mounted hopper, Differential Pinion Shafts. Shafts will be elevated from hopper via a cleated belt and fed sliding, end-to-end into an air-operated, length check device. Over/Under length shafts will be rejected and correct length shafts will be discharged in a continuous, end-to-end stream with axis horizontal into customer’s Broach..

WIDTH

12” Wide Elevating Belt

DRIVE

3/4 HP Motor w/Variable Speed Drive and Overload Relief Clutch

PARTS FED (SIZE)

Differential Pinion Shafts (0.782”-1.026”Ø x 4.48”-6.27” Lg.)

FEED RATE

1,800 Parts/Hour (30 Parts/Minute)
