CASE STUDY

17011: PROJECT FEEDING PINION SHAFTS INTO CENTERLESS GRINDER

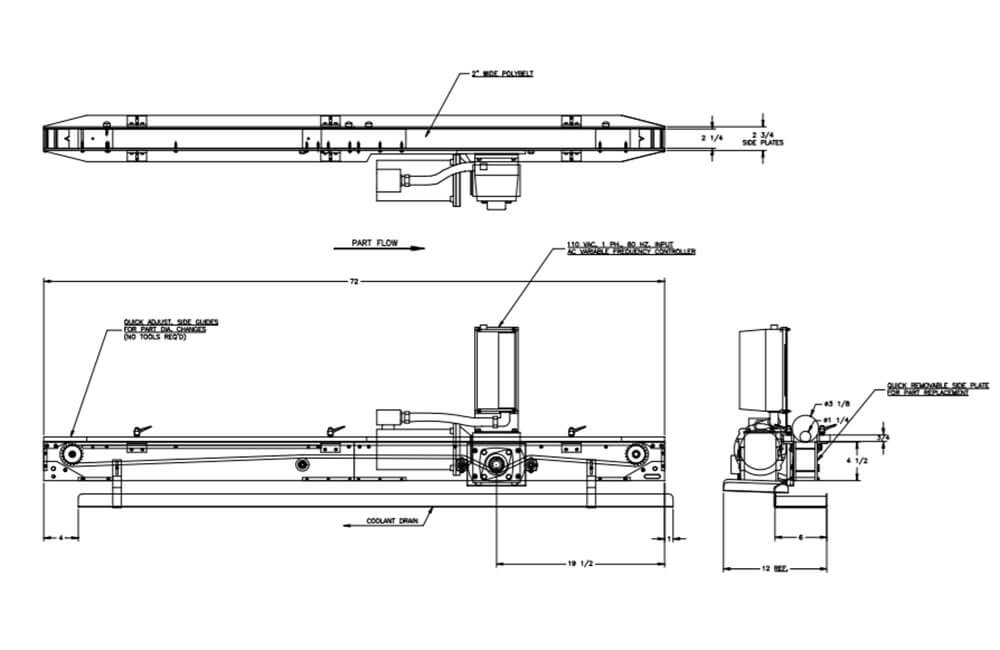

Feedall Model
Model 1650-2PB-72 Exit Conveyor

APPLICATION

Convey Pinion Shafts to the workrest of a CINCINNATI Model 325 Centerless Grinder.

WIDTH

2” Wide Polyurethane Timing Belt

DRIVE

1/4 HP/AC Motor w/Variable Frequency Controller

PARTS FED (SIZE)

Pinion Shafts (1.23”-3.09”Ø x 3.44”-9.51” Lg.)

FEED RATE

1-50 Feet/Minute
