CASE STUDY

16942: PROJECT FEEDING UNIVERSAL JOINT BEARING CUPS INTO ASSEMBLY MACHINE

Feedall Model

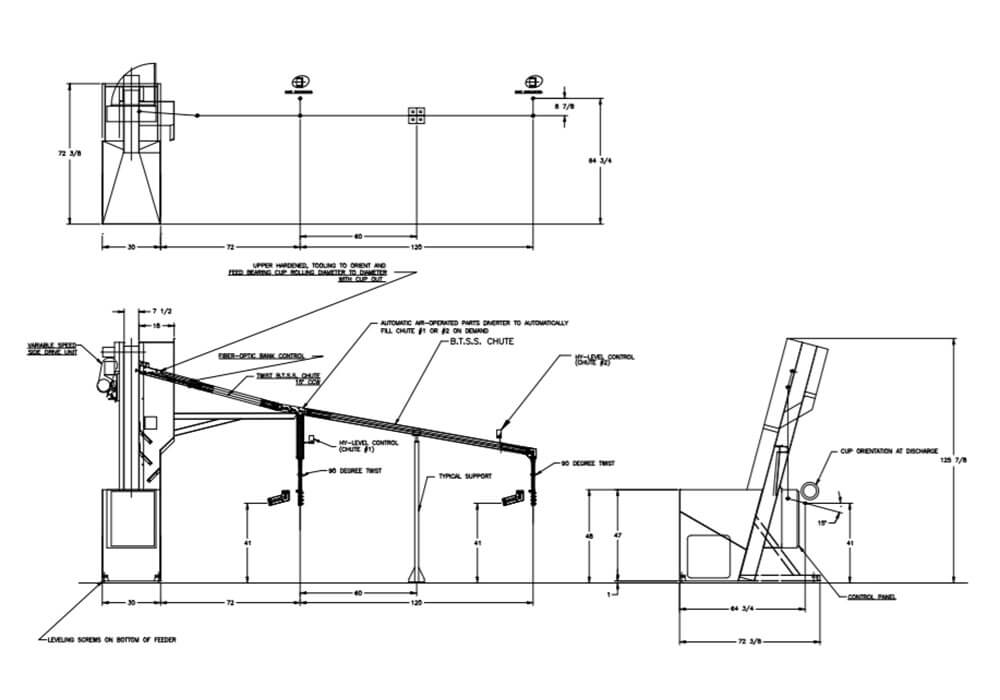

Model 2400-D Elevating Hopper Feeder

APPLICATION

Feed from a random loaded, floor mounted hopper. The Universal Joint bearing Cups will be elevated from the hopper via a cleated belt, face select oriented with open end facing the hopper and discharged in a continuous stream.

WIDTH

7-1/2” Wide Table-Top Chain

DRIVE

3/4 HP/AC Motor

PARTS FED (SIZE)

Universal Joint Bearing Cups (1.063”-1.188”Ø x 0.79”-1.00” Lg.)

FEED RATE

30 Parts/Minute
