CASE STUDY

16885: PROJECT FEEDING MINING/CONSTRUCTION BITS INTO CNC TURNING CENTER

Feedall Model

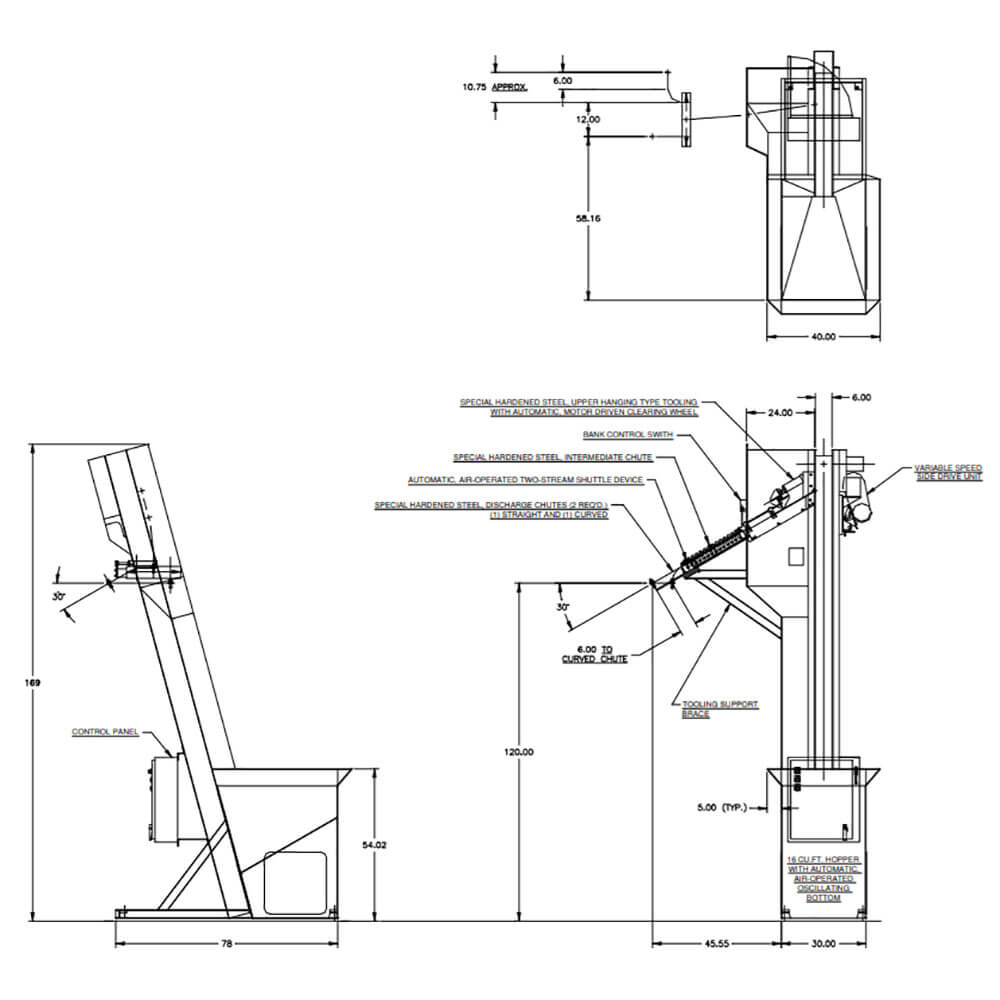

Model 2400-C Elevating Hopper Feeder

APPLICATION

Feed from a random loaded, floor mounted hopper. Mining Bit Blank will be elevated from the hopper via a cleated belt and discharged in a continuous stream, hanging by the head, into a two stream shuffle device that will divide the parts into two streams 12” center to center.

WIDTH

6” Wide Table-Top Chain

DRIVE

3/4 HP/AC Motor

PARTS FED (SIZE)

Mining/Construction Bit Blanks

FEED RATE

6 Parts/Minute
