CASE STUDY

16854: PROJECT FEEDING PARKING PAWL LATCHES INTO INSPECTION MACHINE

Feedall Model

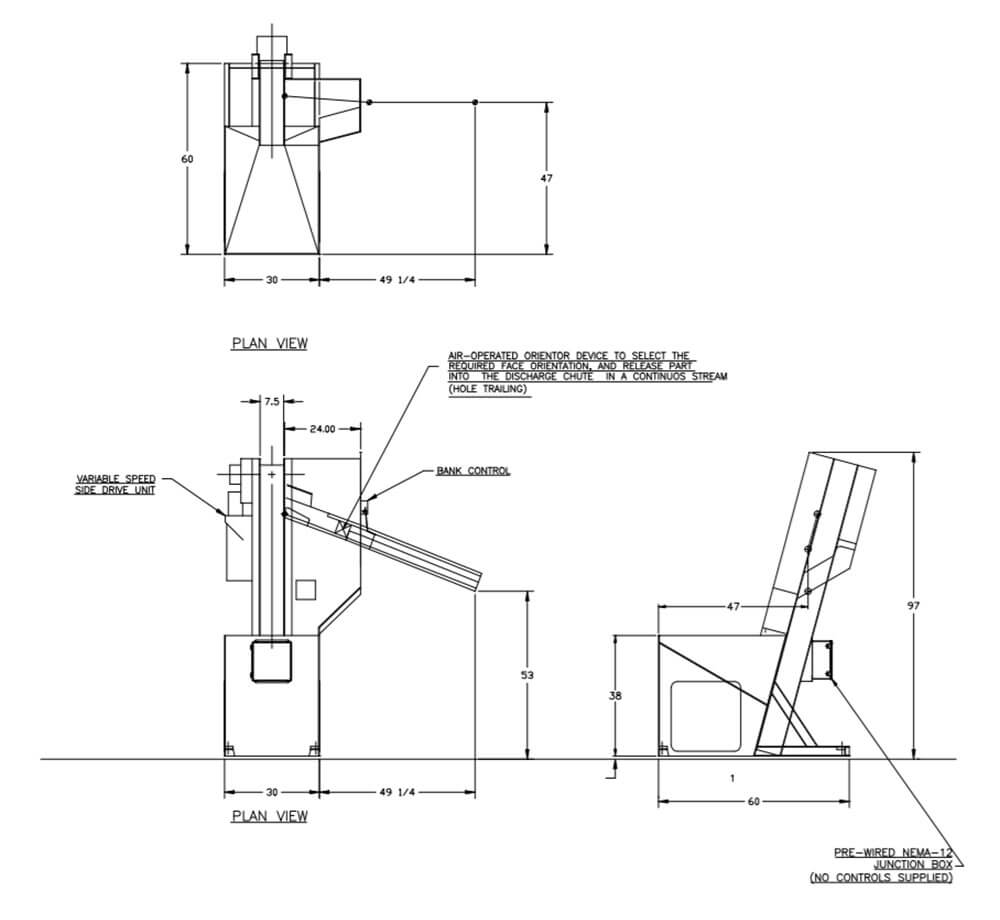

Model 2400-D Elevating Hopper Feeder

APPLICATION

Feed from a random loaded, floor mounted hopper. The Latches will be elevated from the hopper via a cleated belt and discharged in a continuous stream “hole trailing” to an inspection station.

WIDTH

7-1/2” Wide Table-Top Chain

DRIVE

1/2 HP/AC Motor

PARTS FED (SIZE)

Parking Pawl Latches

FEED RATE

10 Parts/Minute
