CASE STUDY

16847: PROJECT FEEDING UNIVERSAL JOINT SPIDERS INTO PALLETIZED CONVEYOR

Feedall Model

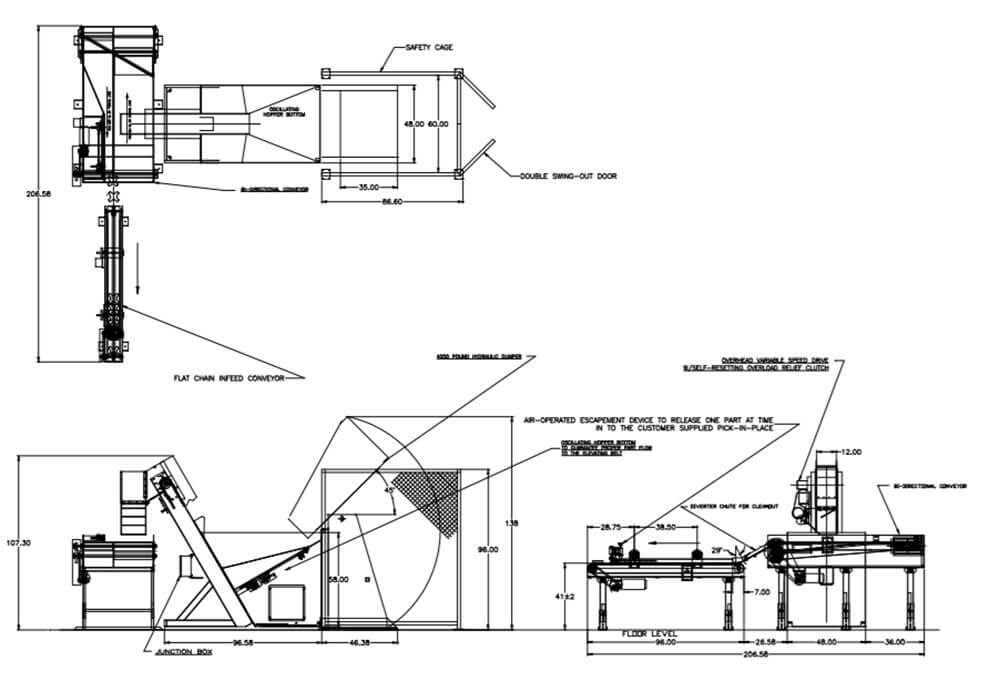

Model 1500 Bi-Directional Orienting Conveyor w/2500-D Elevating Bulk Hopper Feeder, 4,000# Hydraulic Tub Dumper & TTP-7.5-8 Discharge Conveyor

APPLICATION

Feed from a tub dumper into a floor mounted hopper. The Universal Joint Spiders will be elevated from the hopper via a cleated belt and fed onto a discharge conveyor. The parts will then be escaped one at a time into a customer supplied pick-n-place unit.

WIDTH

12” Wide Elevating Belt

DRIVE

3/4 HP/AC Motor

PARTS FED (SIZE)

Universal Joint Spiders (Various Sizes)

FEED RATE

12 Parts/Minute
