CASE STUDY

16828: PROJECT FEEDING STEEL TUBES INTO CENTERLESS GRINDER

Feedall Model

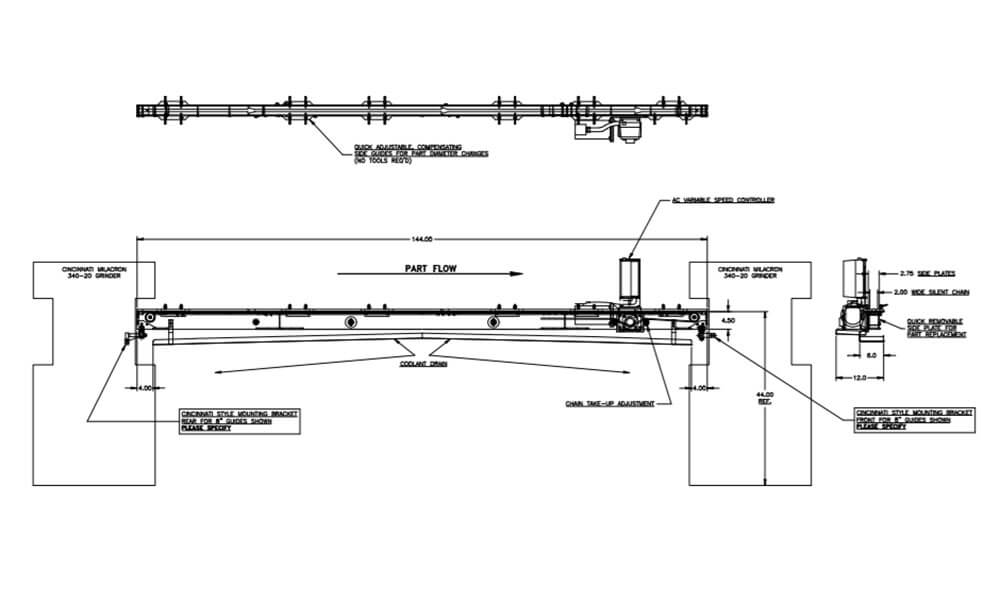

Model 1650-2SC-144 Intermediate Conveyor

APPLICATION

Convey Steel Tubes between the workrests of two CINCINNATI Model 340-20 Centerless Grinders.

WIDTH

2” Wide Silent Chain

DRIVE

1/4 HP/AC Motor w/Variable Frequency Controller

PARTS FED (SIZE)

Steel Tubes (0.75”-2.50”Ø x 4.00”-12.00” Lg.)

FEED RATE

1-50 Feet/Minute
