CASE STUDY

16827: PROJECT FEEDING STEEL TUBES INTO CENTERLESS GRINDER

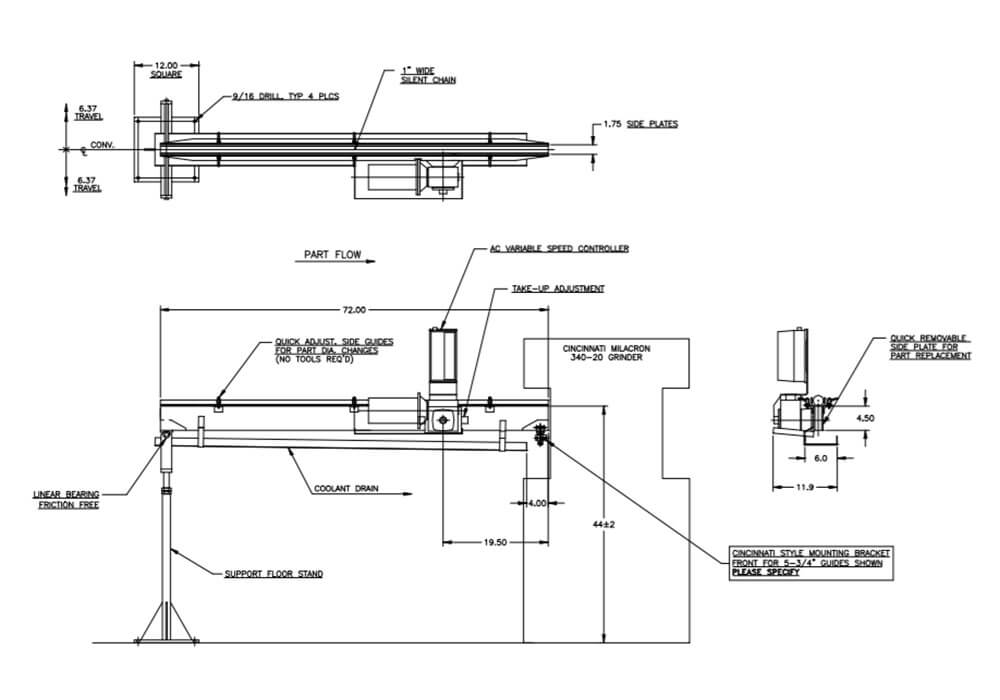

Feedall Model
Model 1650-1SC-72 Entrance Conveyor

APPLICATION

Convey Steel Tubes from the workrest of a CINCINNATI Model 340-20 Centerless Grinder.

WIDTH

1” Wide Silent Chain

DRIVE

1/4 HP/AC Motor w/Variable Frequency Controller

PARTS FED (SIZE)

Steel Tubes (0.75”-2.50”Ø x 4.00”-12.00” Lg.)

FEED RATE

1-50 Feet/Minute
