CASE STUDY

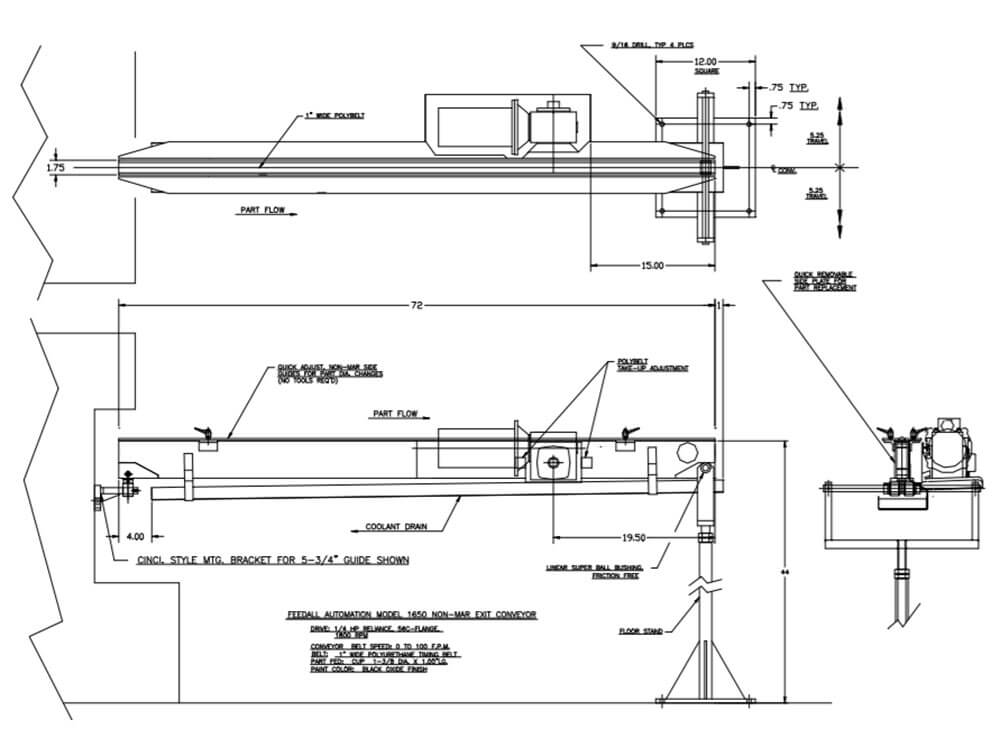

16744: PROJECT FEEDING UNIVERSAL JOINT BEARING CUPS INTO CENTERLESS GRINDER

Feedall Model
Model 1650-1PB-72 Exit Conveyor

APPLICATION

Convey Bearing Cups away from the workrest of a CINCINNATI GRINDING CL-500 Centerless Grinder.

WIDTH

1” Wide Polyurethane Timing Belt

DRIVE

1/4 HP/AC Motor w/Variable Frequency Controller

PARTS FED (SIZE)

Universal Joint Bearing Cups (1.375”Ø x 1.00” Lg.)

FEED RATE

1-50 Feet/Minute
