CASE STUDY

16698: PROJECT FEEDING STEEL SHAFTS INTO CENTERLESS GRINDER

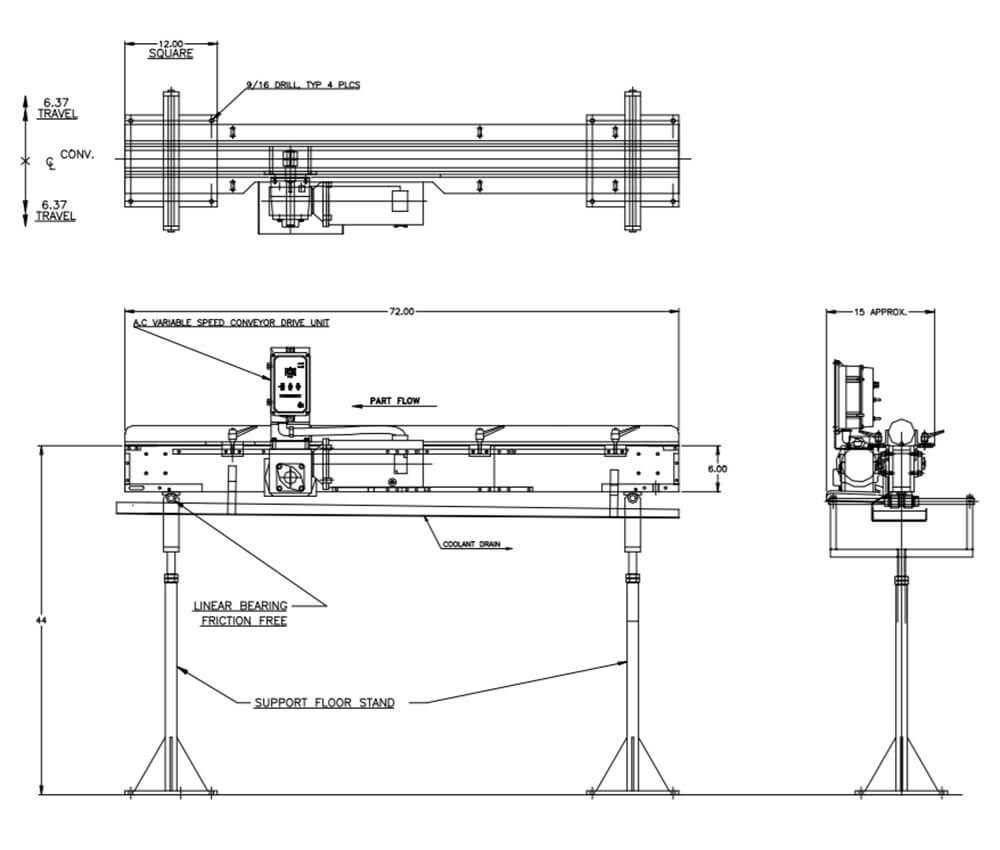

Feedall Model
Model 1650HD-2SC-72 Exit Conveyor

APPLICATION

Convey Steel Pins from the workrest of a CINCINNATI #2 EA Centerless Grinder.

WIDTH

2” Wide Silent Chain

DRIVE

1/2 HP/AC Motor w/Variable Frequency Controller

PARTS FED (SIZE)

Steel Shafts & Bushings (0.50”-3.50”Ø x 3.00”-24.00” Lg.)

FEED RATE

1-50 Feet/Minute
