CASE STUDY

16661: PROJECT FEEDING STEEL SHAFTS INTO CENTERLESS GRINDER

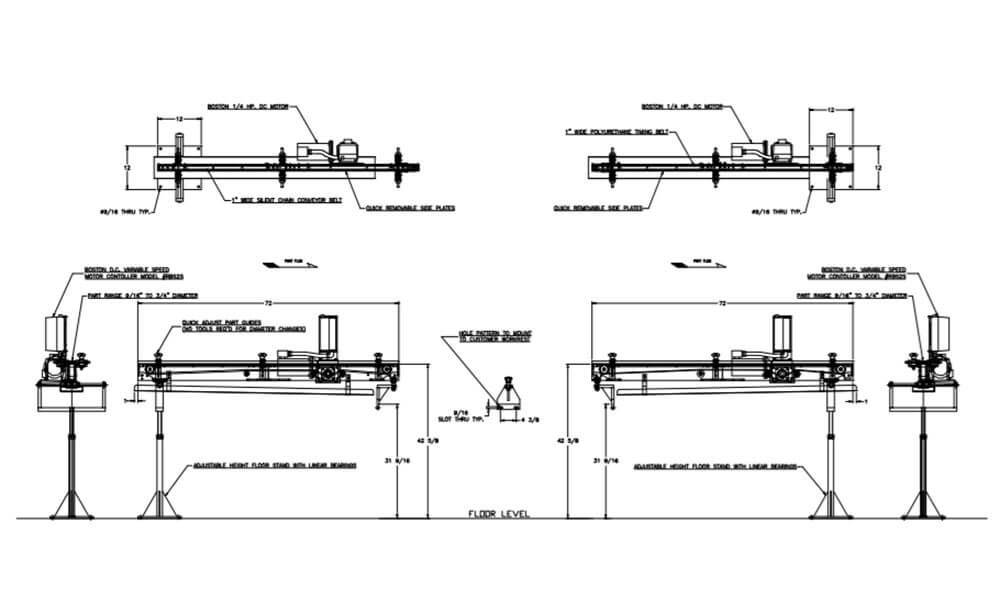

Feedall Model
Model 1650-1SC-72 Entrance Conveyor & 1650-1PB-72 Exit Conveyor

APPLICATION

Convey Shafts to and from the workrest of a LANDIS Viking Centerless Grinder.

WIDTH

1” Wide Silent Chain/1” Wide Polyurethane Timing Belt

DRIVE

1/4 HP/AC Motor w/Variable Frequency Controller

PARTS FED (SIZE)

Steel Shafts (0.563”-0.750”Ø x Variable Lengths)

FEED RATE

1-50 Feet/Minute
