CASE STUDY

16593: PROJECT FEEDING STEEL SLUGS INTO CNC PRESS

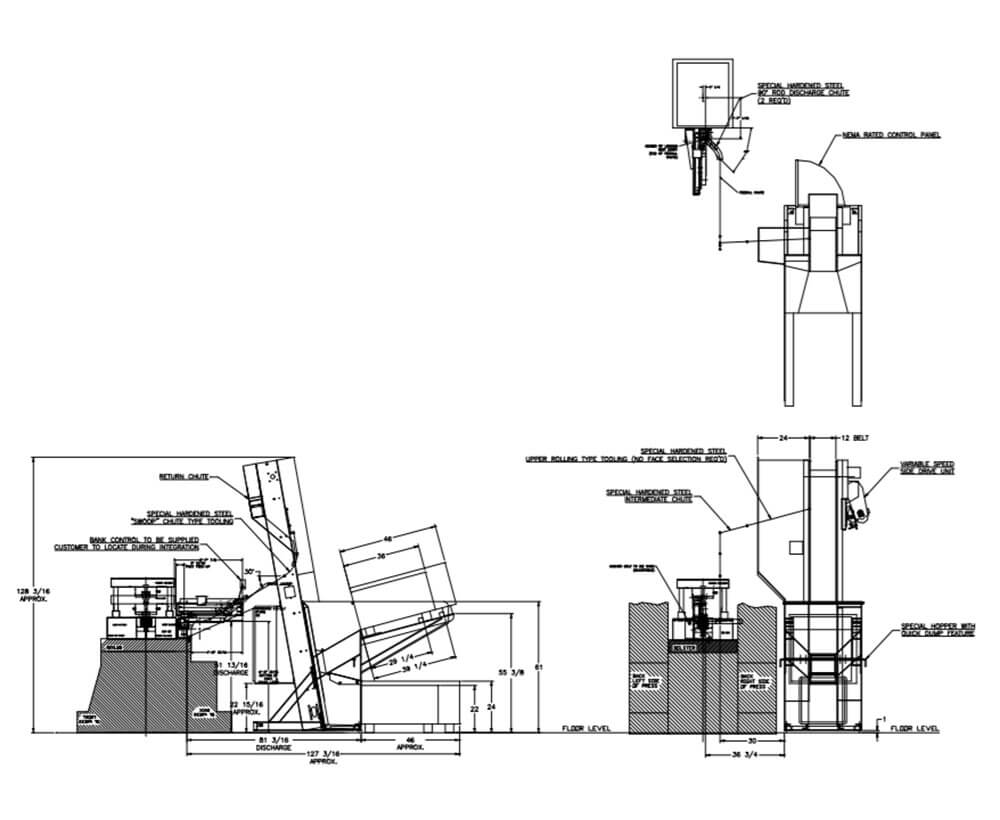

Feedall Model
Model 2500-C Elevating Hopper Feeder

APPLICATION

Feed from a random loaded, floor mounted hopper. The Saw-Cut Steel Slugs will be elevated from the hopper via a cleated belt and discharged in a continuous, diameter-to-diameter stream laying flat with axis vertical.

WIDTH

12” Wide Elevating Belt

DRIVE

3/4 HP/AC Motor

PARTS FED (SIZE)

Saw-Cut Steel Slugs (1.736”-2.344”Ø x 0.810”-1.129” Lg.)

FEED RATE

30 Parts/Minute
