16556: PROJECT FEEDING PLANETARY GEARS INTO GEAR SHAPER

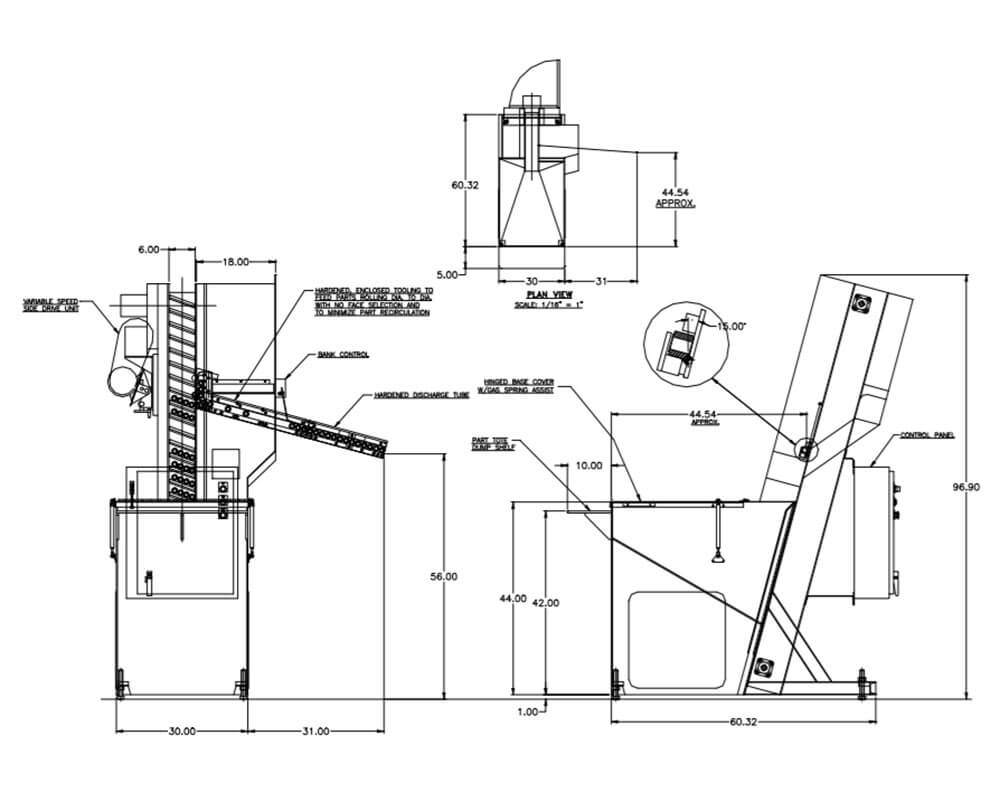

Model 2400-C Elevating Hopper Feeder
Feed from a random loaded, floor mounted hopper. The Gear Blanks will be elevated from hopper via a cleated belt and discharged rolling, in a continuous, diameter-to-diameter stream.
WIDTH6” Wide Table-Top Chain
DRIVE1/2 HP/AC Motor
PARTS FED (SIZE)Planetary Gear Blanks (1.415”Ø x 1.19” Lg.)
FEED RATE6 Parts/Minute
