CASE STUDY

16321: PROJECT FEEDING STEEL SHAFTS INTO CENTERLESS GRINDER

Feedall Model

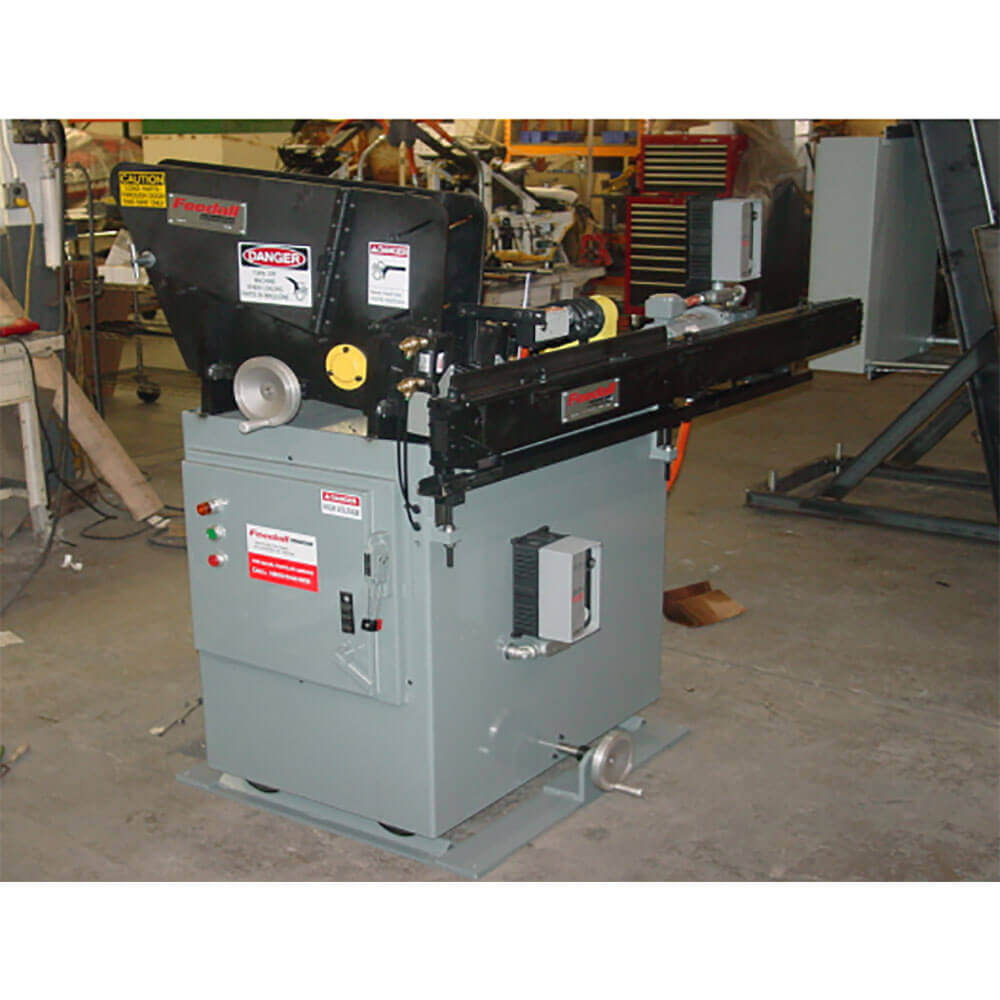

Model 1700-D Magazine Bar Feeder

APPLICATION

Feed from a manually loaded, floor mounted magazine, Steel Shafts. Shafts will be fed in a continuous, diameter-to-diameter stream and escaped one at a time onto a front mounted, Cross-Feed Conveyor, that will translate Shafts in a continuous, end-to-end stream to the workrest of a Centerless Grinder.

DRIVE

1/4 HP/DC/PM Motor w/Variable Frequency Drives

PARTS FED (SIZE)

Steel Shafts (5/16”Ø x up to 6” Lg.)

FEED RATE

1,500 Parts/Hour (25 Parts/Minute)
