CASE STUDY

16243: PROJECT FEEDING TAPERED ROLLER BEARING RACES INTO CNC TURNING CENTER

Feedall Model

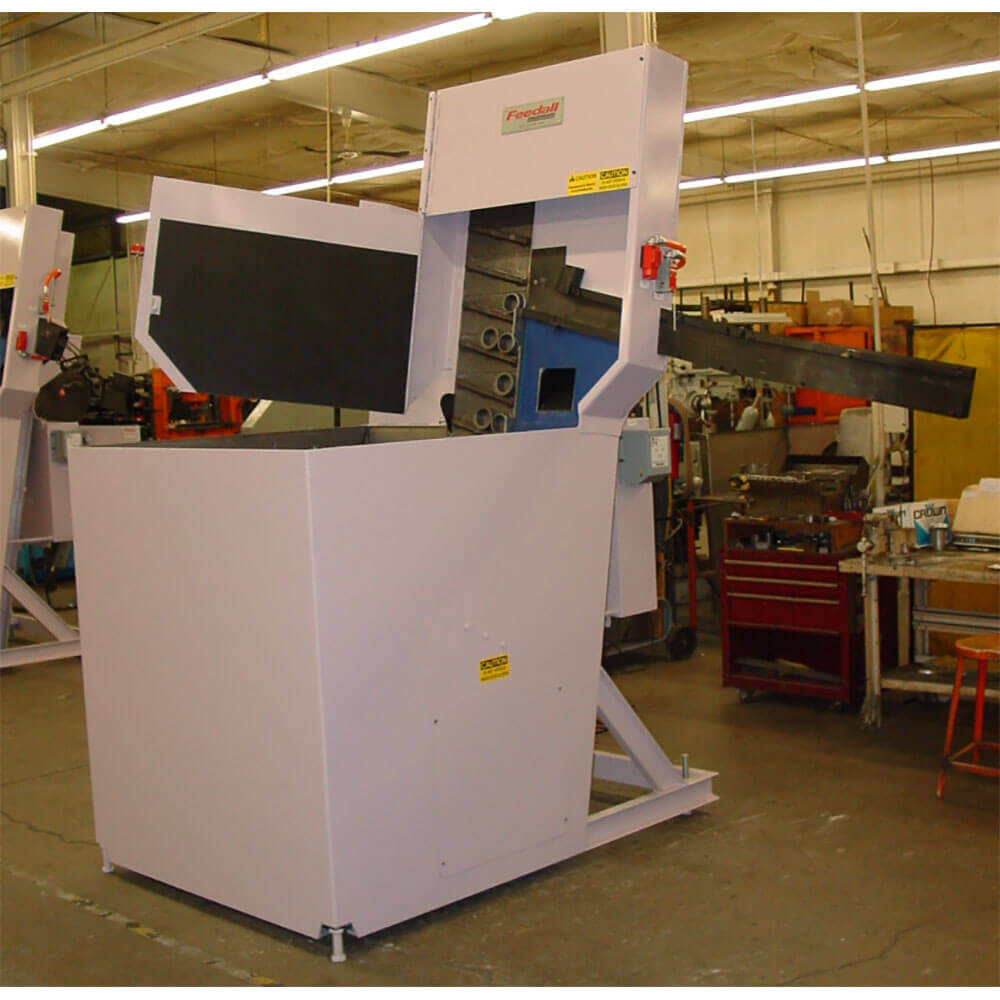

Model 2500-D Elevating Hopper Feeder

APPLICATION

Feed from a random loaded, floor mounted hopper, Tapered Roller Bearing Cone Forgings. Forgings are elevated out of hopper with cleated belt and discharged in a continuous, diameter-to-diameter stream oriented with flanged side facing the feeder and axis horizontal into load chute of a CNC Turning Center.

WIDTH

12” Wide Elevating Belt

DRIVE

3/4 HP/AC Motor w/Variable Speed Drive and Overload Relief Clutch

PARTS FED (SIZE)

Tapered Roller Bearing Cone Forgings (90.38mm O.D. by 36.093mm long)

FEED RATE

240 Parts/Hour (4 Parts/Minute)
