CASE STUDY

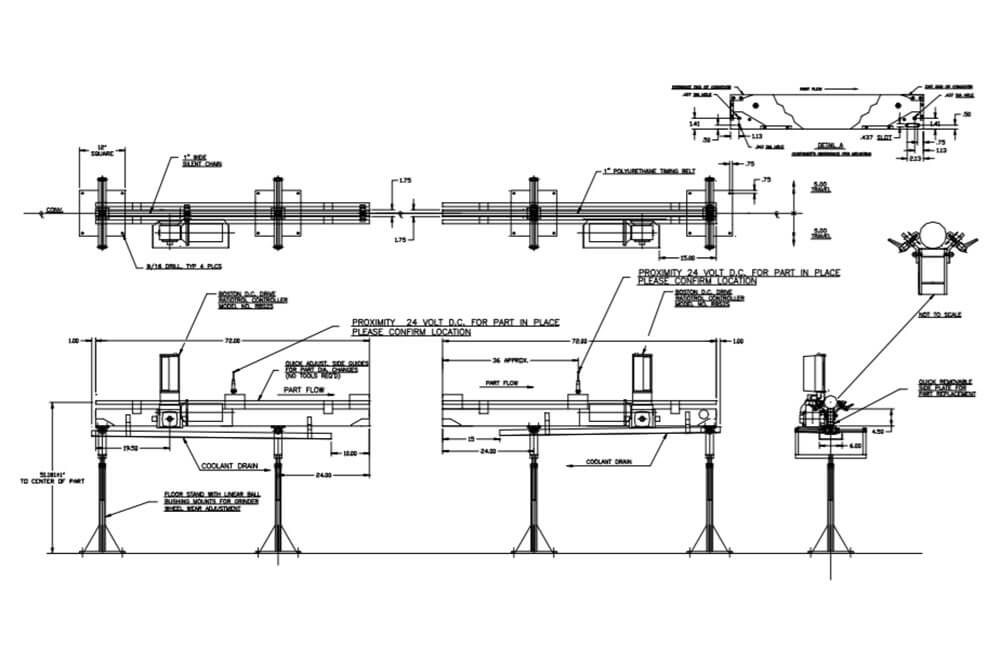

15796: PROJECT FEEDING ENGINE CYLINDER LINERS INTO CENTERLESS GRINDER

Feedall Model
Model 1650-1SC-84 Entrance Conveyor

APPLICATION

Convey Engine Cylinder Liners to the workrest of a Micron Centerless Grinder.

WIDTH

1” Wide Silent Chain

DRIVE

1/4 HP/AC Motor w/Variable Frequency Controller

PARTS FED (SIZE)

Engine Cylinder Liners (3.743”Ø x 5.19” Lg.)

FEED RATE

1-50 Feet/Minute
