CASE STUDY

15616: PROJECT FEEDING DIFFERENTIAL PINION SHAFTS INTO CENTERLESS GRINDER

Feedall Model

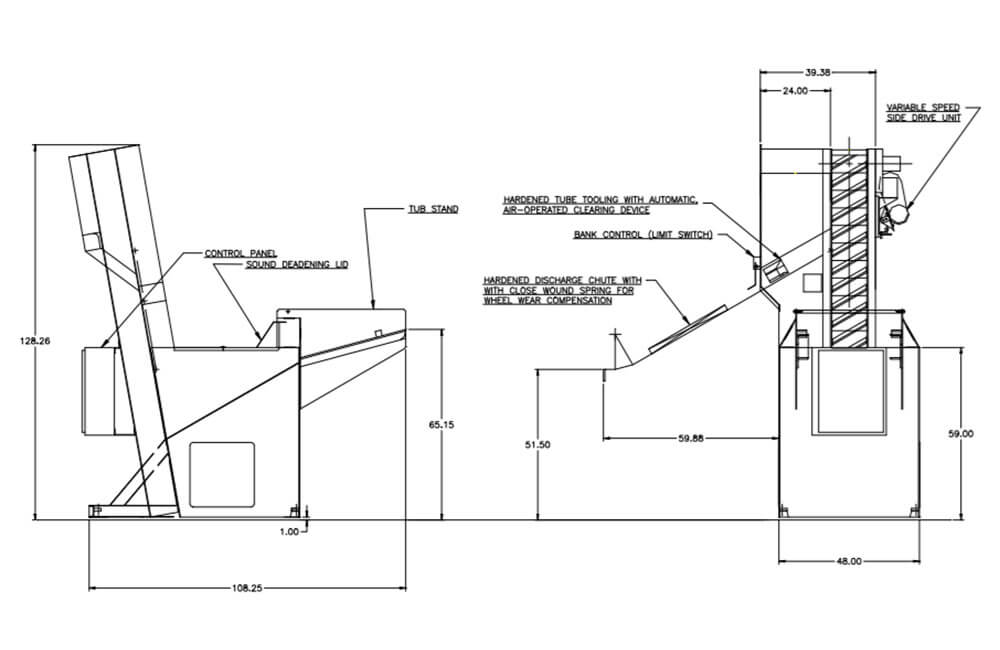

Model 2500-D Elevating Hopper Feeder

APPLICATION

Feed from a random loaded, floor mounted hopper. The Differential Shafts will be elevated from the hopper via a cleated belt and fed in a continuous, end-to-end stream to the workrest of a Centerless Grinder.

WIDTH

12” Wide Elevating Belt

DRIVE

3/4 HP/AC Motor

PARTS FED (SIZE)

Differential Pinion Shafts (0.710”-0.929”Ø x 4.41”-5.79” Lg.)

FEED RATE

90-120 Inches/Minute
