CASE STUDY

13756-B: PROJECT FEEDING INNER BEARING RACES INTO RACE GRINDER

Feedall Model
Model 2400 D

APPLICATION

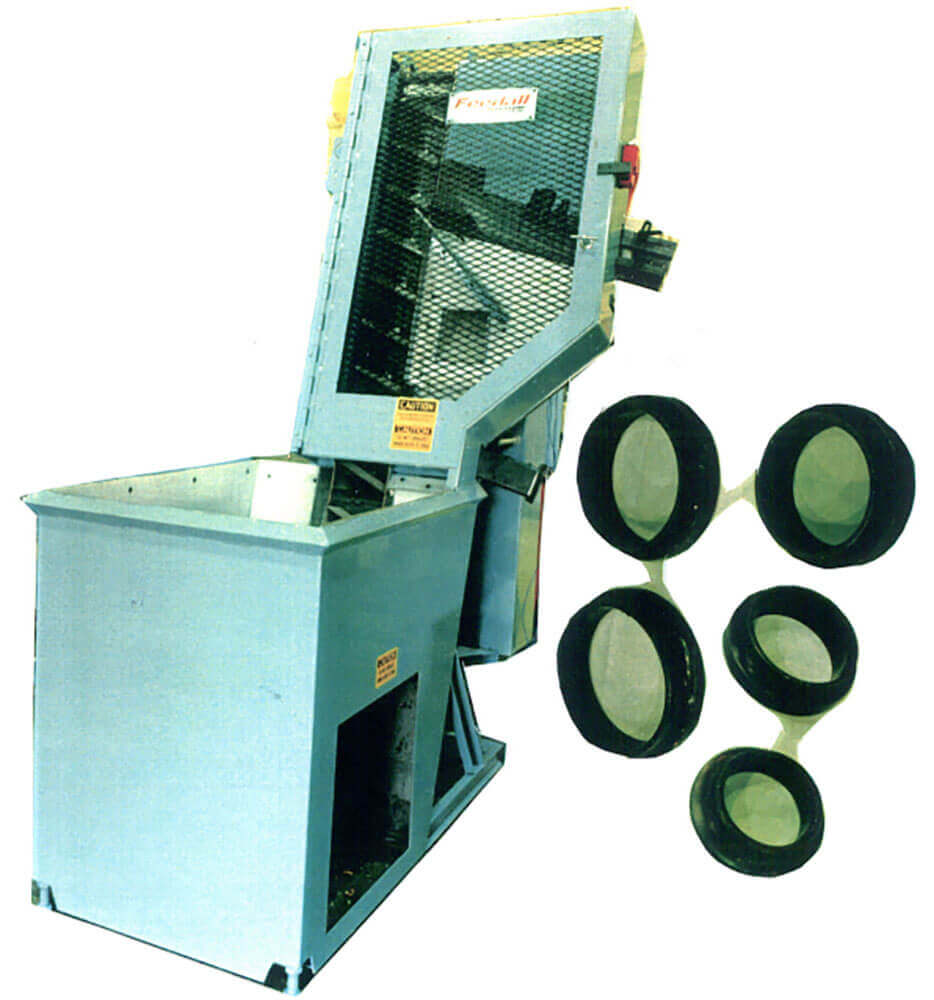

Feed from a random loaded floor hopper inner bearing races 1.250″ to 2.75″ DIA. By .375″ to .750″ thick. The races are elevated from the hopper then discharged rolling through orienting tooling, face oriented then fed DIA. to DIA. rolling to a ball race grinder at 66″ above the floor at a rate of 1200 per hour.
7 1/2″ wide elevator belt, 8 cubic foot hopper.
DWG. P9434 R 2

WIDTH

7 1/2" wide elevator belt

FEED RATE

1200 per hour
