CASE STUDY

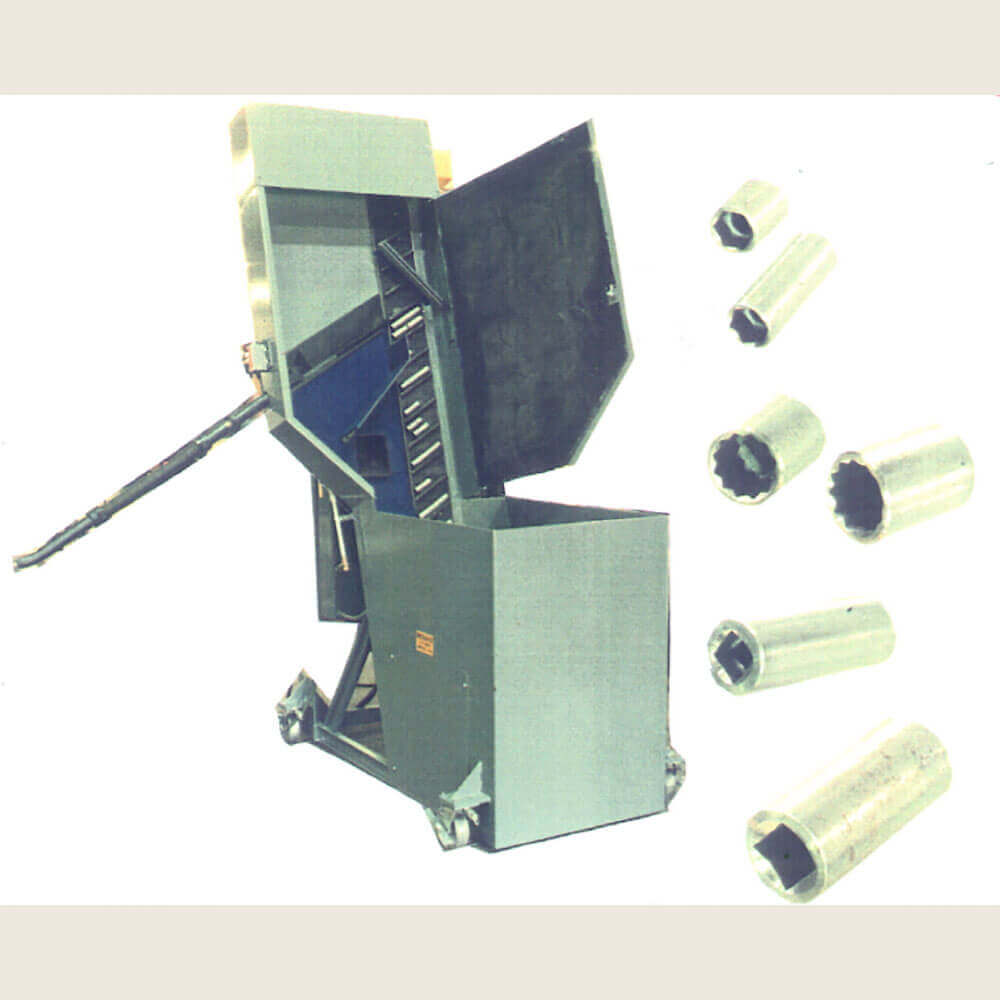

13708: PROJECT FEEDING DEEP WELL SOCKETS INTO CENTERLESS GRINDER

Feedall Model
Model 2400 D

APPLICATION

Feed from a random loaded floor hopper socket wrenches .720″ to 1.440″ diameter by 1.00″ to 3.25″ long. The sockets are elevated from the hopper then discharged sliding end to end in a continuous stream to a centerless grinder at 42″ above the floor at a feed rate of 70 to 200″ per minute 7 1/2″ wide elevator belt, 10 cubic foot hopper with floor casters.
DWG. P 9305 R2.

WIDTH

7 1/2" wide elevator belt

FEED RATE

70 to 200" per minute
