CASE STUDY

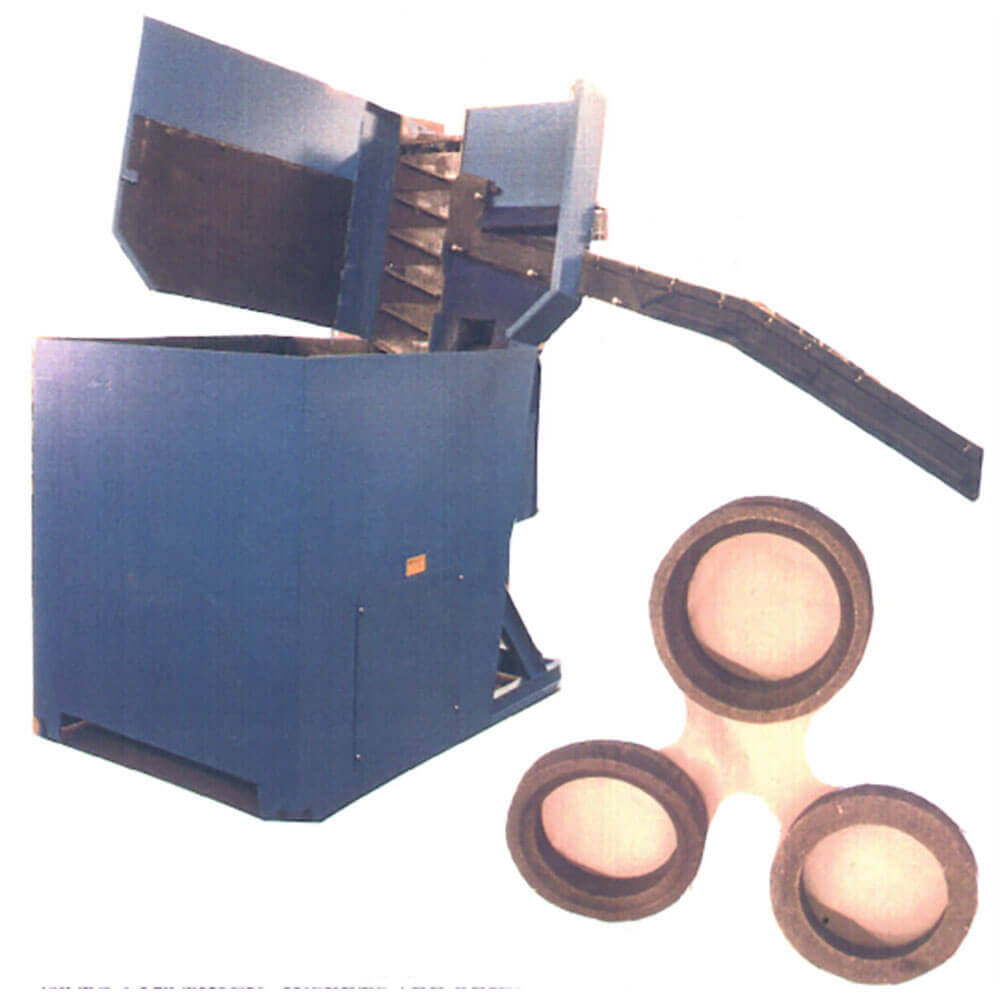

13701: PROJECT FEEDING VALVE SEAT INSERTS INTO DOUBLE DISC GRINDER

Feedall Model
Model 2500 C

APPLICATION

Feed from a random loaded floor hopper, valve seat inserts 3.00″ to 4.00″ diameter by .40″ to 1.25″ thick. Inserts are oriented diameter to diameter rolling in a continuous stream then fed to a face grinder at 40″ above the floor at a feed rate of 1200 to 2000 parts per hour.
12″ wide elevator belt, 14 cubic ft. hopper.
DRG. P-8526-R3

WIDTH

12" wide elevator belt

FEED RATE

1200 to 2000 parts per hour
