CASE STUDY

13680: PROJECT FEEDING VALVE YOKE GUIDE PIN INTO CENTERLESS GRINDER

Feedall Model
Model 2400 C

APPLICATION

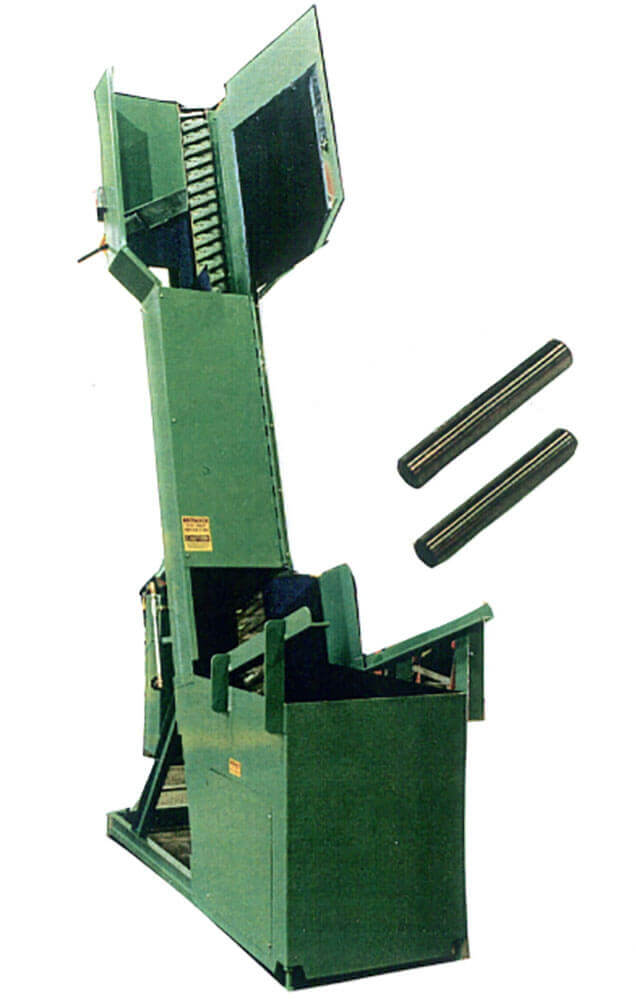

Feed from a random loaded floor hopper pins .439″ diameter by 2.800″ long. The pins are elevated from the hopper then oriented end to end and fed in a continuous stream to a height of 144″ above the floor to the existing customer assembly machine at a rate of 20 pins per minute. 6″ wide elevator belt, 6 cubic foot hopper. DWG. P 9247 R1

WIDTH

6" wide elevator belt

FEED RATE

20 pins per minute
