CASE STUDY

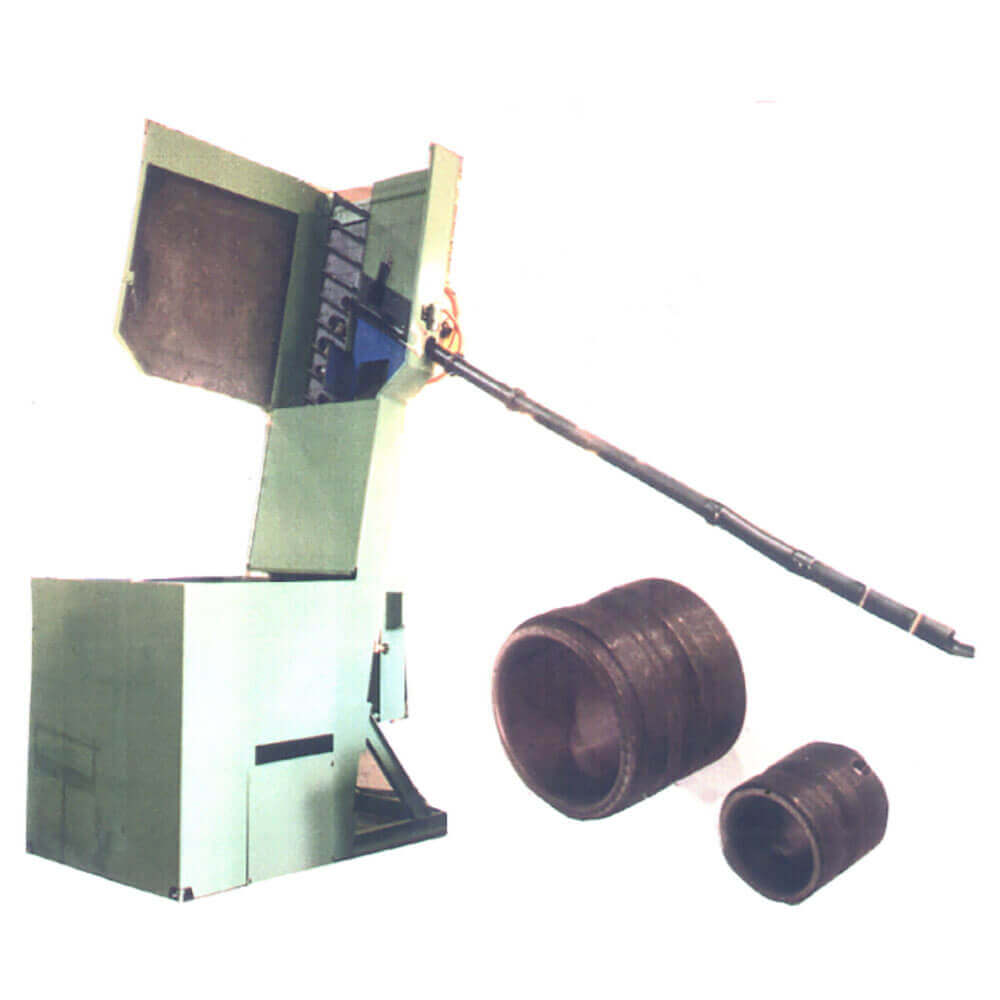

13588: PROJECT FEEDING INNER RINGS INTO CENTERLESS GRINDER

Feedall Model
Model 2500 C

APPLICATION

Feed from a random loaded floor hopper inner bearing races 1.50″ to 3.03″ diameter by 1.40″ to 2.51″ long. The races will be oriented end to end sliding in a continuous stream and fed to a centerless grinder at 42″ above the floor at a feed rate of 700 to 1500 parts per hour.
12″ wide elevator belt, 14 cubic foot hopper.
DWG P 9178 R2.

WIDTH

12" wide elevator belt

FEED RATE

700 to 1500 parts per hour
