CASE STUDY

13585: PROJECT FEEDING UNIVERSAL JOINT BEARING CUPS INTO CENTERLESS GRINDER

Feedall Model
Model 2400 D

APPLICATION

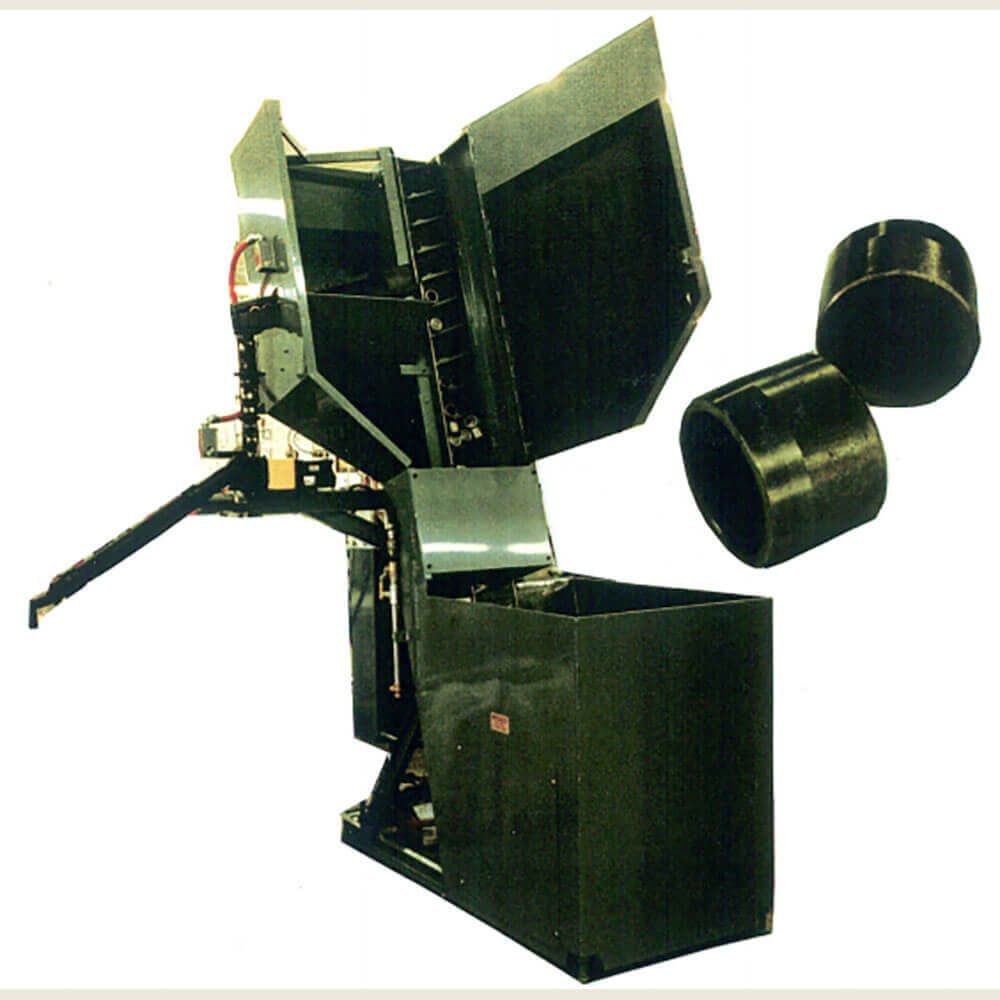

Feed from a random loaded floor hopper, U-joint bearing cups 2″ diameter by 1.50″ long. The cups are elevated from the hopper, fed rolling through orienting tooling to orient cup open side out. Cups then drop through a 1/4 turn twisted chute to orient cups solid end leading. The cups then will be pushed one at a time into a close wound spring chute and fed in a continuous stream to a centerless grinder at 42″ above the floor at a rate of 30 to 50 cups per minute. 7 1/2″ wide elevator belt, 8 cubic foot hopper.
DWG 9270 R 1

WIDTH

7 1/2" wide elevator belt

FEED RATE

30 to 50 cups per minute
