CASE STUDY

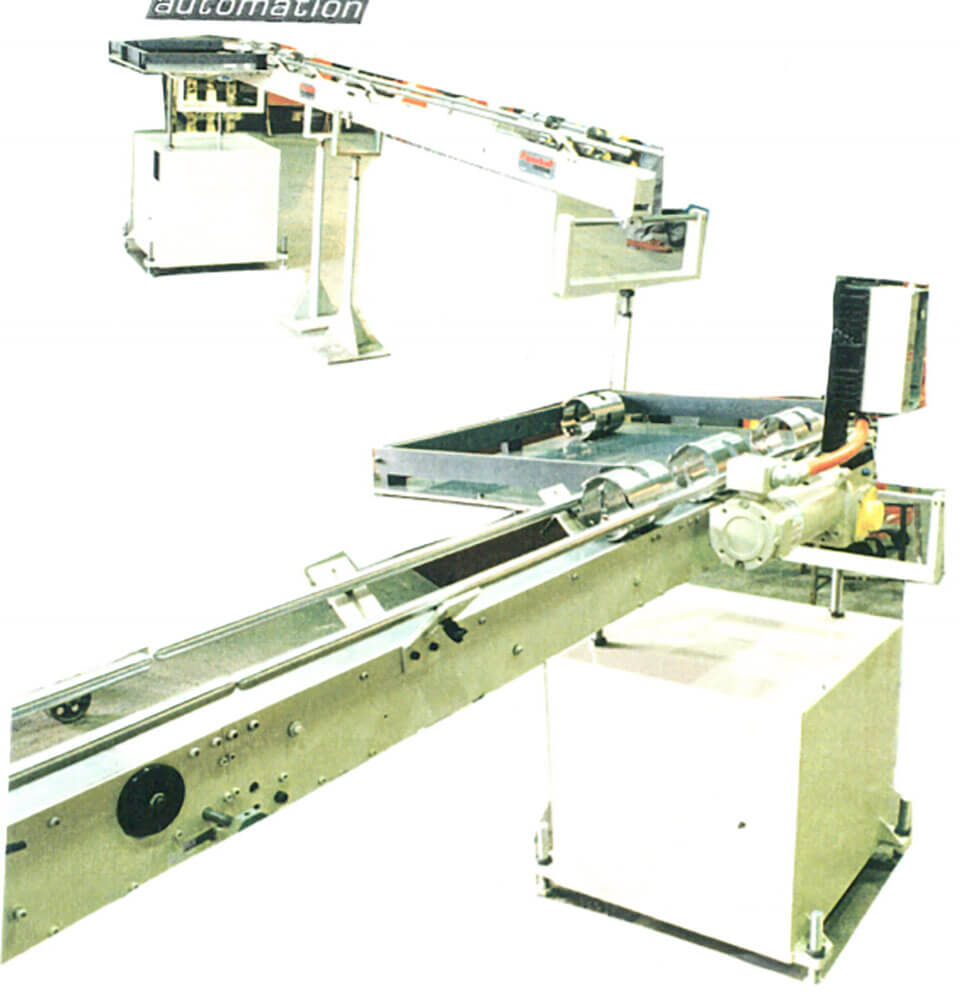

13176: PROJECT FEEDING CAST IRON CYLINDER SLEEVES INTO CENTERLESS GRINDER

Feedall Model
Model 1650 2 72 Midified, Input & Exit

APPLICATION

Feed from a random loaded floor mounted hopper universal joint clips, .937 to 1.260″ DIA. X .625 to .780″ LG. The cups will be oriented open side out, then tracked diameter to diameter vertical into a motor driven pusher device to the work rest of a centerless grinder at a rate of 85 to 170 parts per minute at 42 3/4″ above the floor. Pusher equipped with dc variable speed motor.
DWG. P9083

FEED RATE

85 to 170 parts per minute
