CASE STUDY

13049: PROJECT FEEDING UNIVERSAL JOINT BEARING CUPS INTO CENTERLESS GRINDER

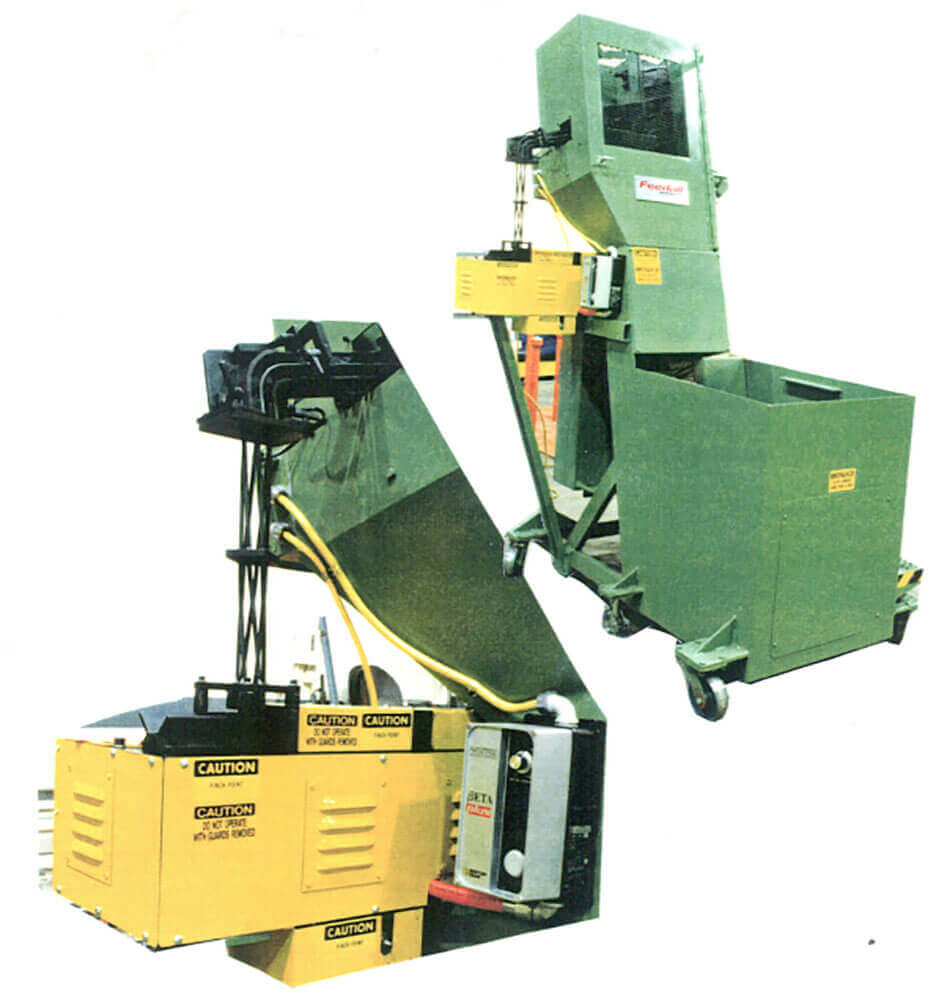

Feedall Model
Model 2400

APPLICATION

Feed from a random loaded floor mounted hopper universal joint clips, .937 to 1.260″ dia. X .625 to .780″ LG. The cups will be oriented open side out, then tracked diameter to diameter vertical into a motor driven pusher device to the work rest of a centerless grinder at a rate of 85 to 170 parts per minute at 42 3/4″ above the floor. Pusher equipped with DC variable speed motor. DWG. P9083

FEED RATE

85 to 170 parts per minute
