13009: PROJECT FEEDING PISTON PINS INTO END FINISHER
Model 2500 D

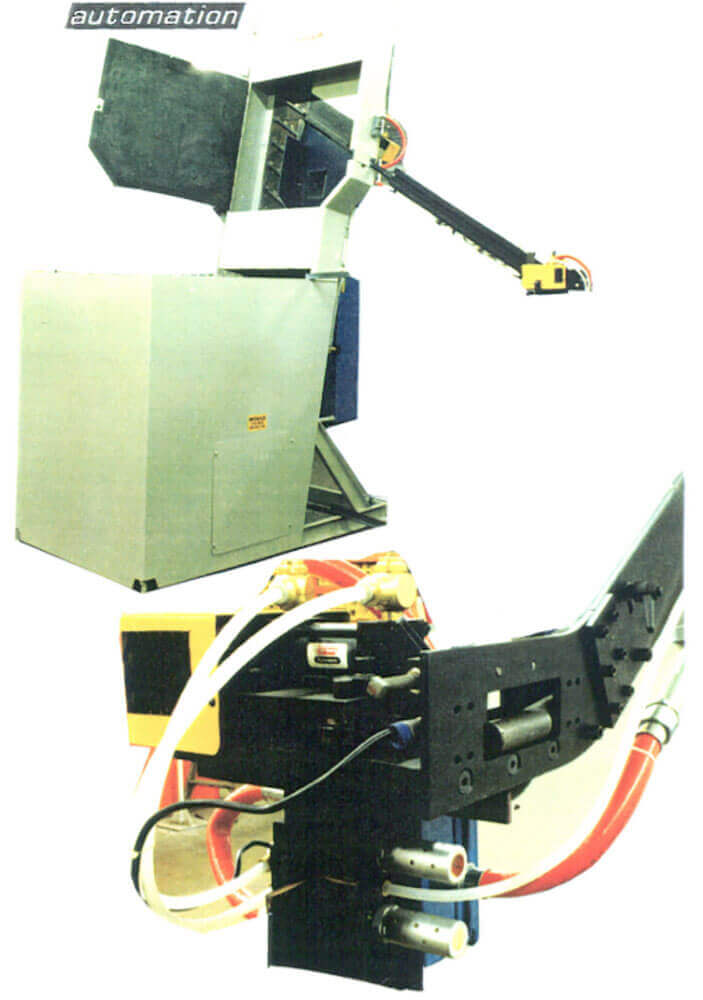

Feed from a random loaded floor mounted hopper, piston wrist pins .75 to 1.50″ DIA. X 2 top 4 LG. The pins are to be oriented and fed in a single rolling diameter to diameter stream to the input of the economy end finisher magazine at a height of 59″ above the floor at a feed rate of 40 to 60 parts per minute.
12″ wide elevator belt, 20 CU. FT. Hopper.
DWG. P 8526 R
WIDTH12" wide elevator belt
FEED RATE40 to 60 parts per minute
