CASE STUDY

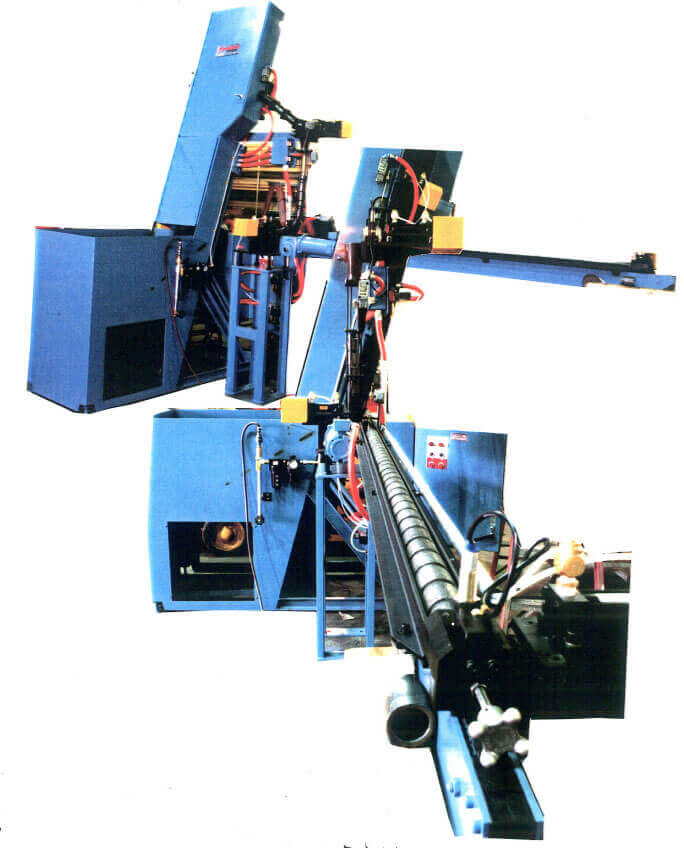

12965: PROJECT FEEDING FORGED COUPLING BLANKS INTO MULTI-SPINDLE CHUCKER
Feedall Model
Model 2400 D
APPLICATION
Feed from a random loaded floor mounted hopper cold forged hydraulic fittings. The blanks will be oriented all the way and transferred on to our conveyor then conveyed end to end to a transfer for positioning to a loader for a national acme at 48″ above the floor at a feed rate of 3 to 10 per minute.
7 1/2″ wide elevator belt, 12 CU. FT. Hopper.
DWG. PD 8886
WIDTH
7 1/2" wide elevator beltFEED RATE
3 to 10 per minute
