CASE STUDY

12915: PROJECT FEEDING CONSTANT VELOCITY JOINT RACES INTO PRESS

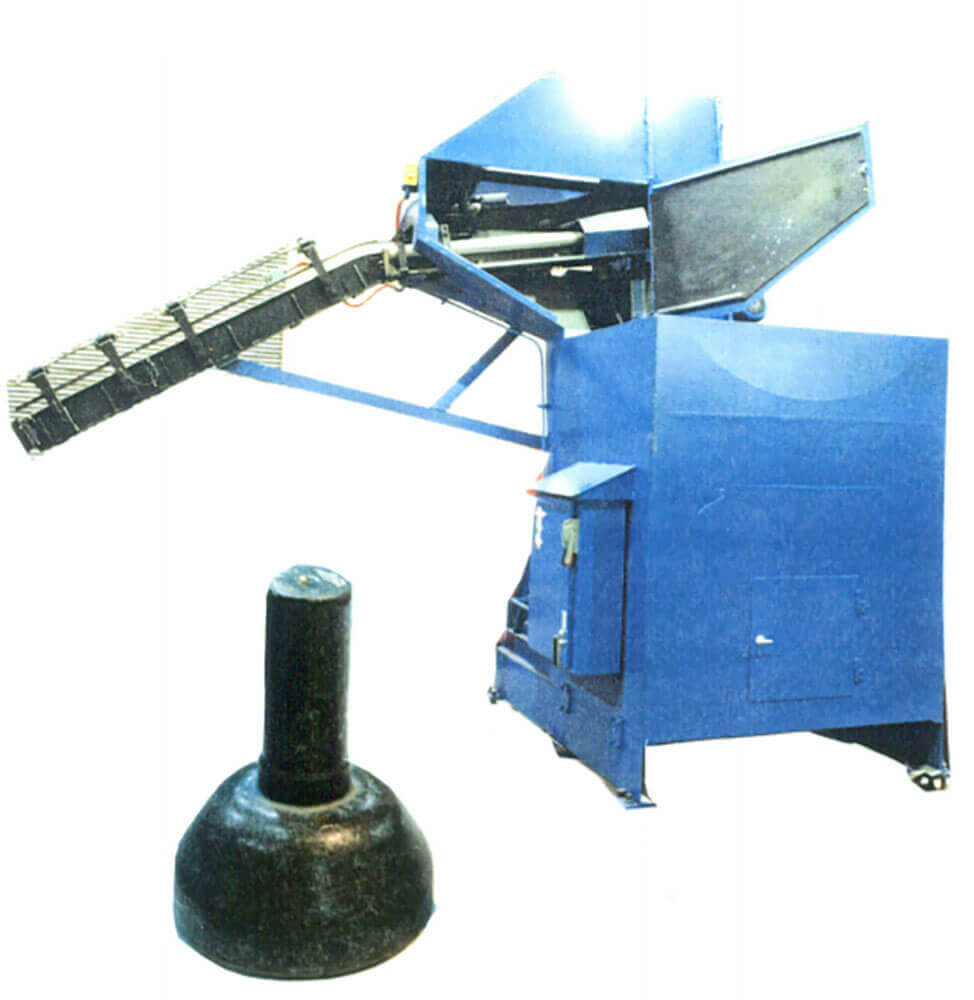

Feedall Model
Model 2500 HD

APPLICATION

Feed from a random loaded floor mounted hopper, auto CV joint outer races. The races are oriented head up, axis vertical and fed in a single stream to a press at a height of 52″ above the floor at a feed rate of 25 per minute.
12″ wide elevator, 30 CU. FT. Hopper.
DWG. PD 8922 R 2

WIDTH

12" wide elevator

FEED RATE

25 per minute
