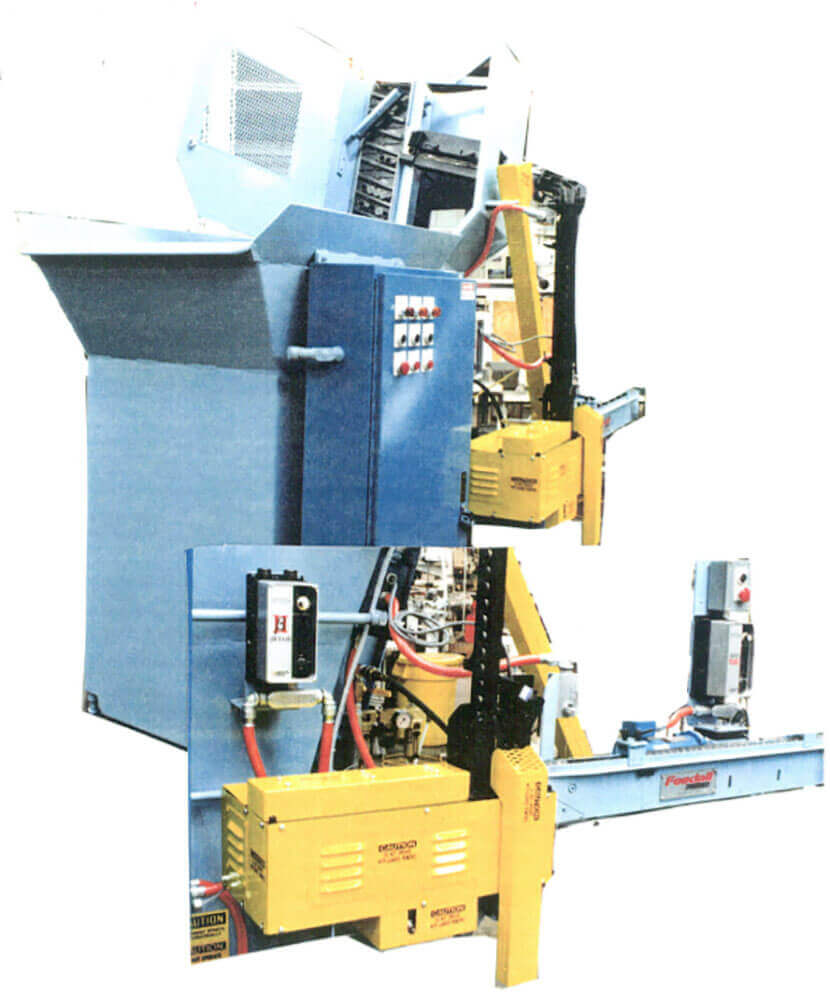

12561: PROJECT FEEDING UNIVERSAL JOINT BEARING CUPS INTO CENTERLESS GRINDER
Model 2400 D
Feed from a random loaded floor mounted hopper, bearing cups .944 to 1.387″ DIA. X .610 to 1.162″ LG. The cups are to be oriented open side out rolling diameter to diameter to a variable speed pusher then fed end to end over an input conveyor to the work rest of a centerless grinder at 42″ above the floor at a rate of 60″ per minute. 7 1/2″ wide elevator belt, 16 CU. FT. Hopper.
DWG. P 8432 R
WIDTH7 1/2" wide elevator belt
FEED RATE60" per minute
