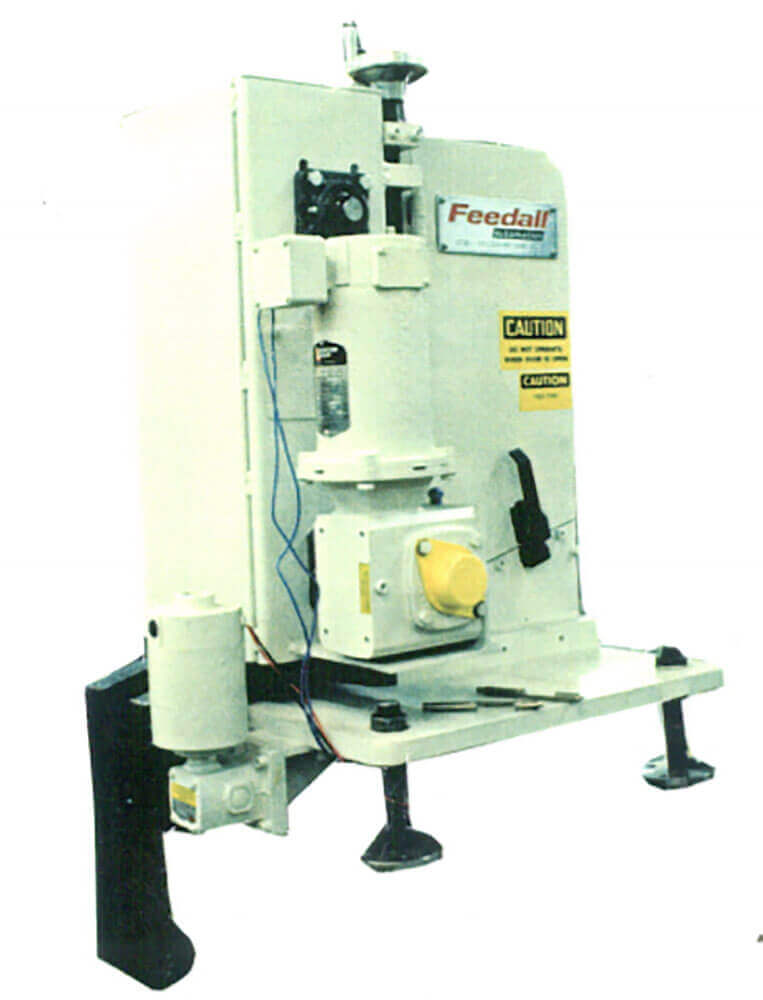

12480: PROJECT FEEDING THROTTLE SHAFTS INTO ASSEMBLY MACHINE
Feed from a manually loaded magazine throttle body shafts .392″ DIA. X 5.67″ LG. The shafts will be fed rolling diameter to diameter into a radial orienting each shaft by the milled flats for the throttle plates, vertical. The shafts will be discharged in a vertical stack for the pick up from the assembly machine at a rate of 12 to 15 per minute.
DWG. P 8453
FEED RATE12 to 15 per minute
