CASE STUDY

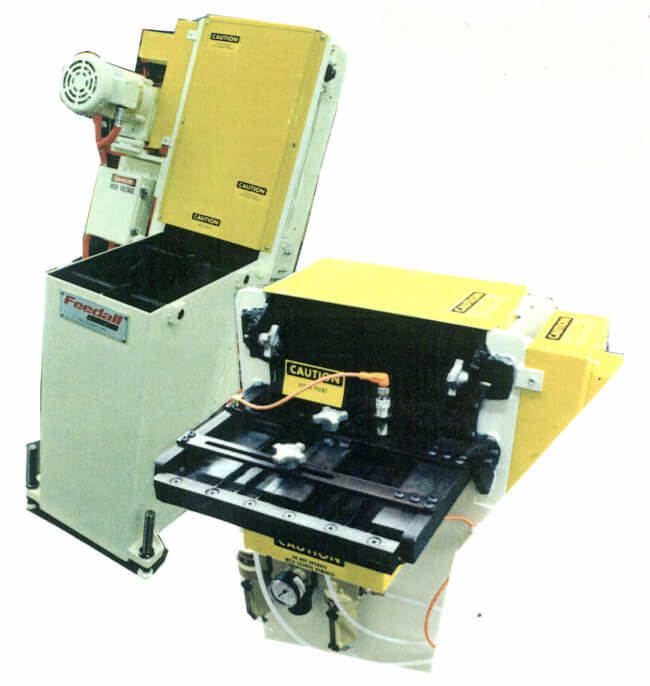

12423: PROJECT FEEDING ARMATURE SHAFTS INTO GRINDER

Feedall Model
Model 1200

APPLICATION

Feed from a manually stacked hopper, dc armature shafts .370 to .400 dia. X 4 1/2 to 7″ LG. The shafts are escaped rolling one at a time from the rear of the elevator at a height of 42 1/2″ at a rate of 40 per minute.
12″ elevator belt, 1.74 CU. ft. hopper.
DWG. PD 8459 R 1

FEED RATE

40 per minute
