CASE STUDY

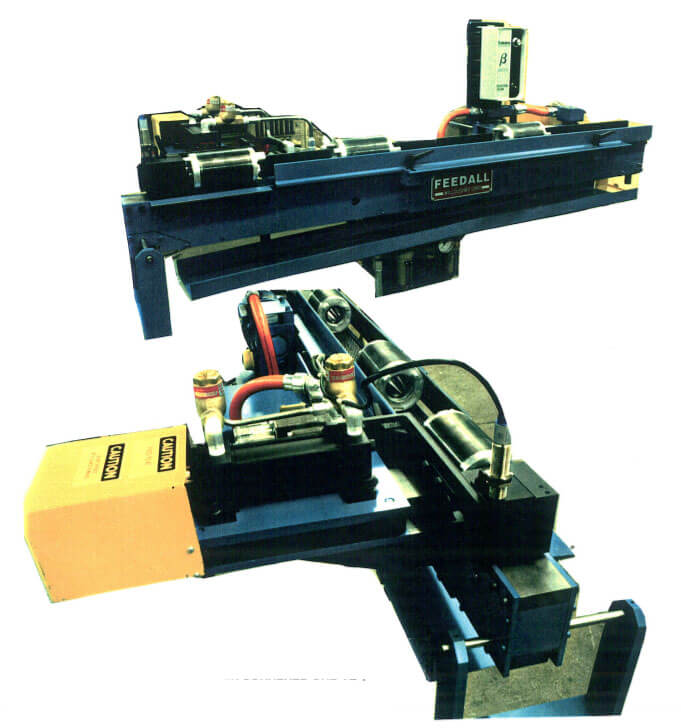

12083: PROJECT FEEDING MOTOR ROTORS INTO CENTERLESS GRINDER

Feedall Model
Model 1650 Modified

APPLICATION

Convey electric motor rotors 1 1/2 to 3 1/2″ DIA. X 2 5/8 to 7 1/4″ LG. The rotors will be conveyed one at a time to the conveyor mounted transfer device then transferred to the grinder load fixture at 42 3/4″ above the floor at a rate of 10 per minute.
DWG PD 8340 R1

FEED RATE

10 per minute
