CASE STUDY

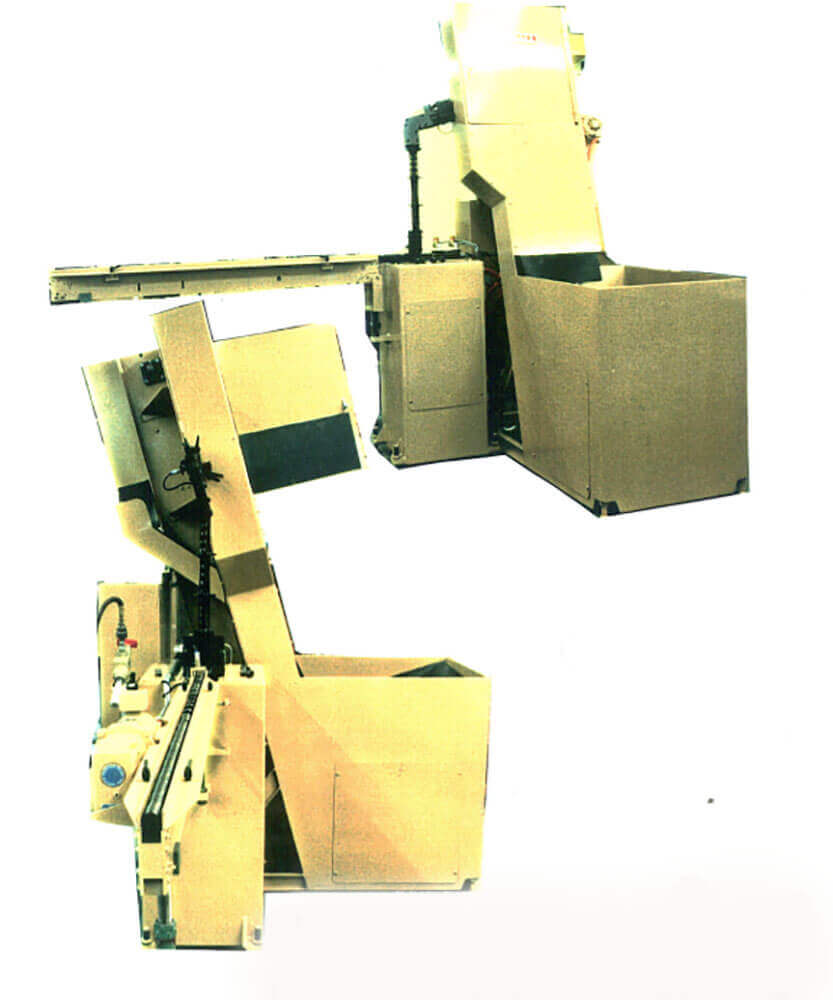

11632: PROJECT FEEDING UNIVERSAL JOINT BEARING CUPS INTO CENTERLESS GRINDER

Feedall Model
Model 2400 C

APPLICATION

Feed from a random loaded floor mounted hopper, universal joint bearing cups 7/8 to 1 1/8″ dia. X 3/4 to 1″ LG. The cups will be oriented open side out rolling dia. to dia. to a vertical 90 degree twisted chute to a pneumatic pusher device advancing one cup at a time to an in put conveyor, conveying the cups closed end loading in a continuous stream to a centerless grinder at 42 3/4 above the floor at a rate of 1500 to 2000 per. hour.
6″ wide elevator, 6 CU. FT. hopper.
DWG. PD 8092

WIDTH

6" wide elevator

FEED RATE

1500 to 2000 per hour
