CASE STUDY

11479: PROJECT FEEDING PIPE COUPLINGS INTO ASSEMBLY MACHINE

Feedall Model
Model 2500 C

APPLICATION

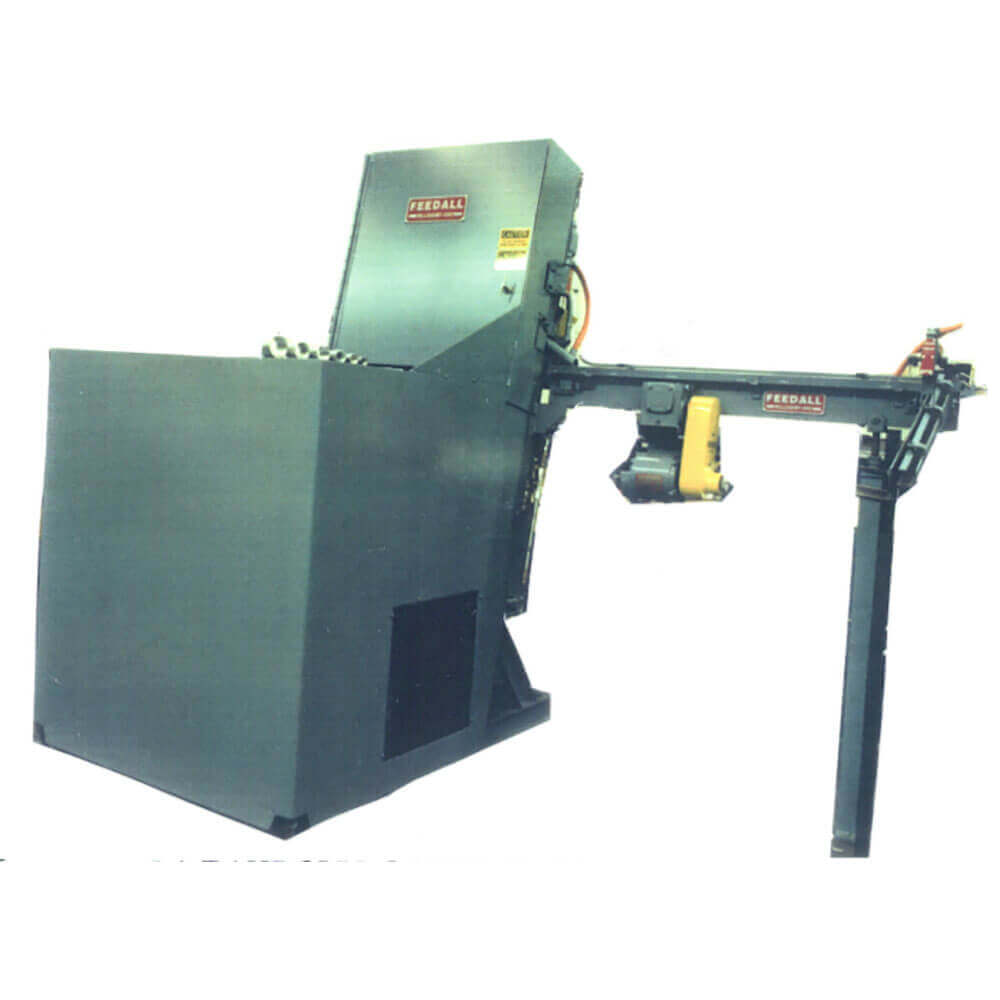

Feed from a random loaded floor hopper, couplings 1/2, 3/4, 1, 1 1/4, 1 1/2 & 2 NPT. Parts are elevated from the hopper then oriented end to end and fed to a conveyor then transferred rolling one at a time into a chute to an automatic assembly machine that threads one coupling on a conduit tube at a rate of 1500 to 3000 per hour at a height of 47″ above the floor. 12″ wide elevator belt, 14 cubic foot hopper, 62″ long conveyor and pneumatic transfer.
DWG. P 7997.

WIDTH

12" wide elevator belt

FEED RATE

1500 to 3000 per hour
