CASE STUDY

11046: PROJECT FEEDING STEEL BILLETS INTO INDUCTION HEATER

Feedall Model
Model 2400 D

APPLICATION

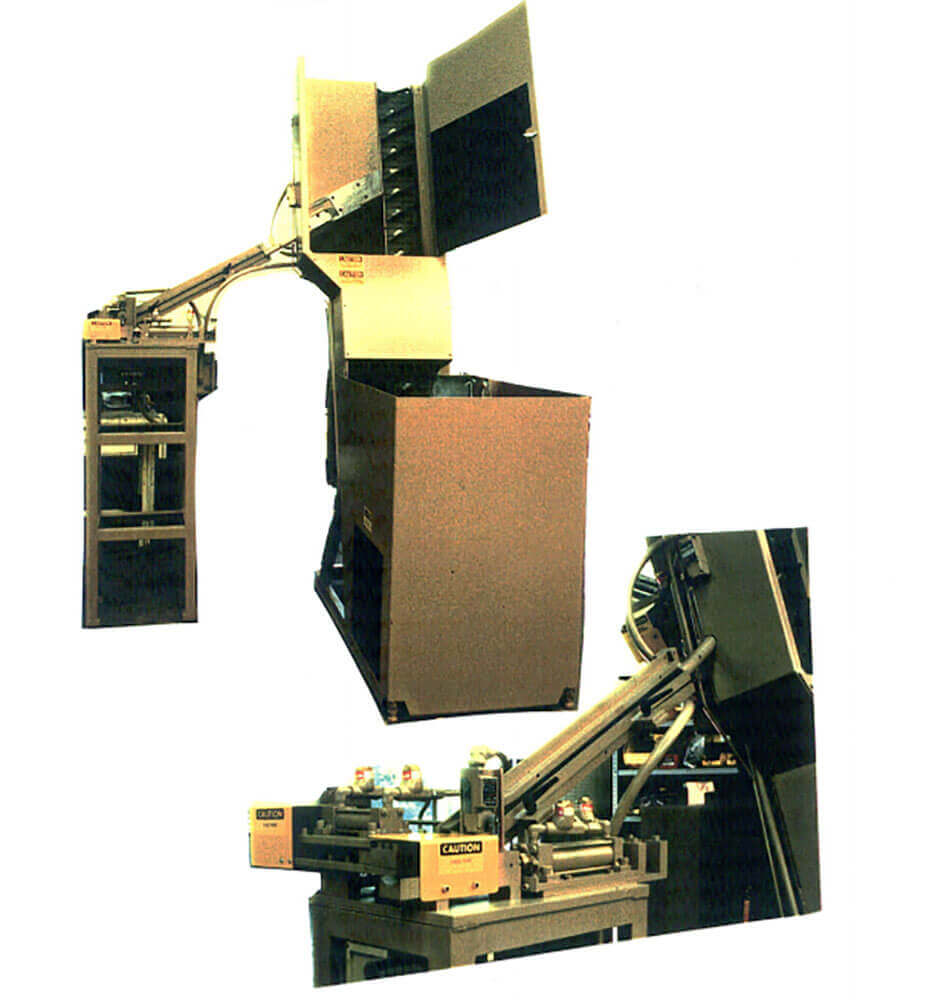

Feed from a random loaded floor mounted hopper, steel billets, 3/4 to 1 1/4 DIA. X 3 to 4″ LG. The billets will be oriented end to end then fed and transferred rolling one at a time into a pusher, then advanced to an induction heater for forging at a height of 55″ above the floor at a rate of 24 billets per minute.
7 1/2″ wide elevator belt, 12 CU. FT. hoper.
DWG. P 7674 R

WIDTH

7 1/2" wide elevator belt

FEED RATE

24 billets per minute
