CASE STUDY

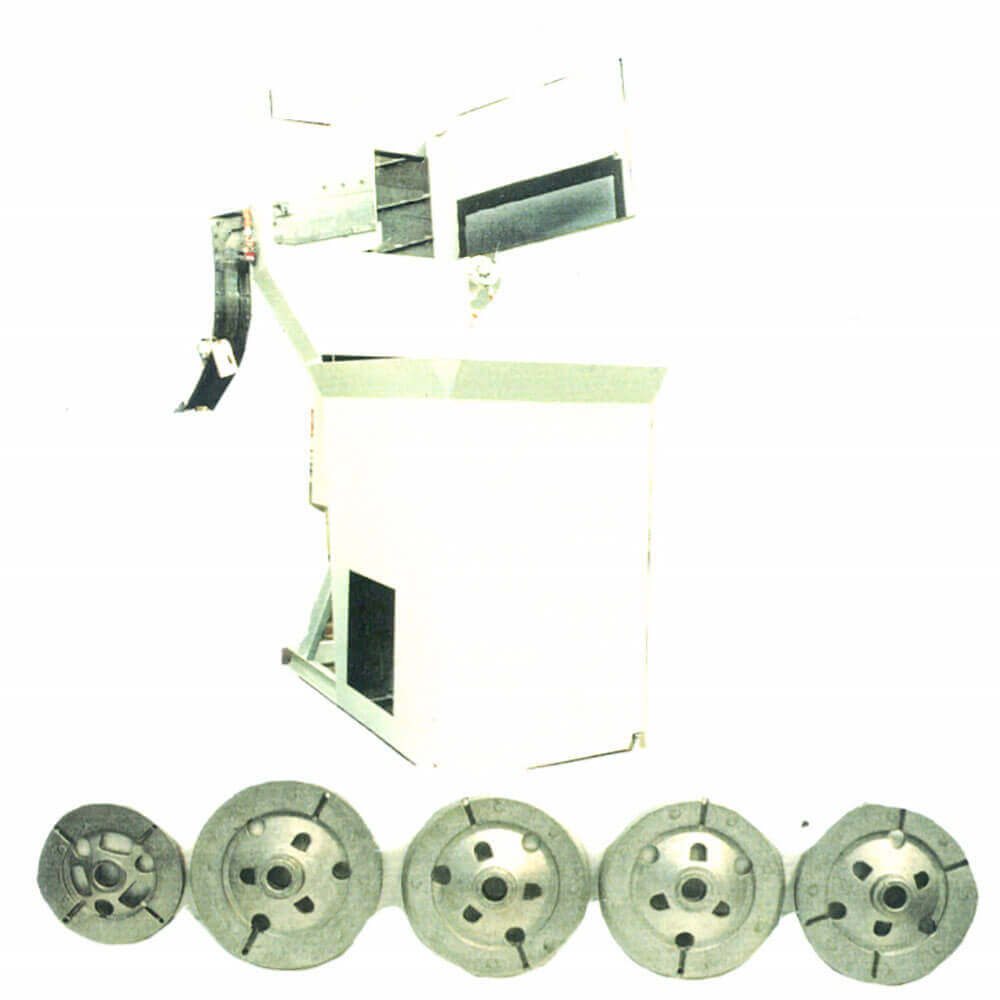

10726: PROJECT FEEDING CAST ALUMINUM CLUTCH DISCS INTO CNC TURNING CENTER

Feedall Model
Model 2500 D

APPLICATION

Feed from a random loaded floor mounted hopper, aluminum cast clutch discs, the discs will be elevated from the hopper then face oriented and fed diameter to diameter horizontal hub down to a point 48″ above the floor at a rate of 720 per hour to a machine cell.
12″ wide elevator belt, 20 CU. FT. Hopper.
DWG. P 6775

WIDTH

12" wide elevator belt

FEED RATE

720 per hour
