CASE STUDY

10593: PROJECT FEEDING EMBOSSED STEEL DISCS INTO PRESS

Feedall Model
Model 2500

APPLICATION

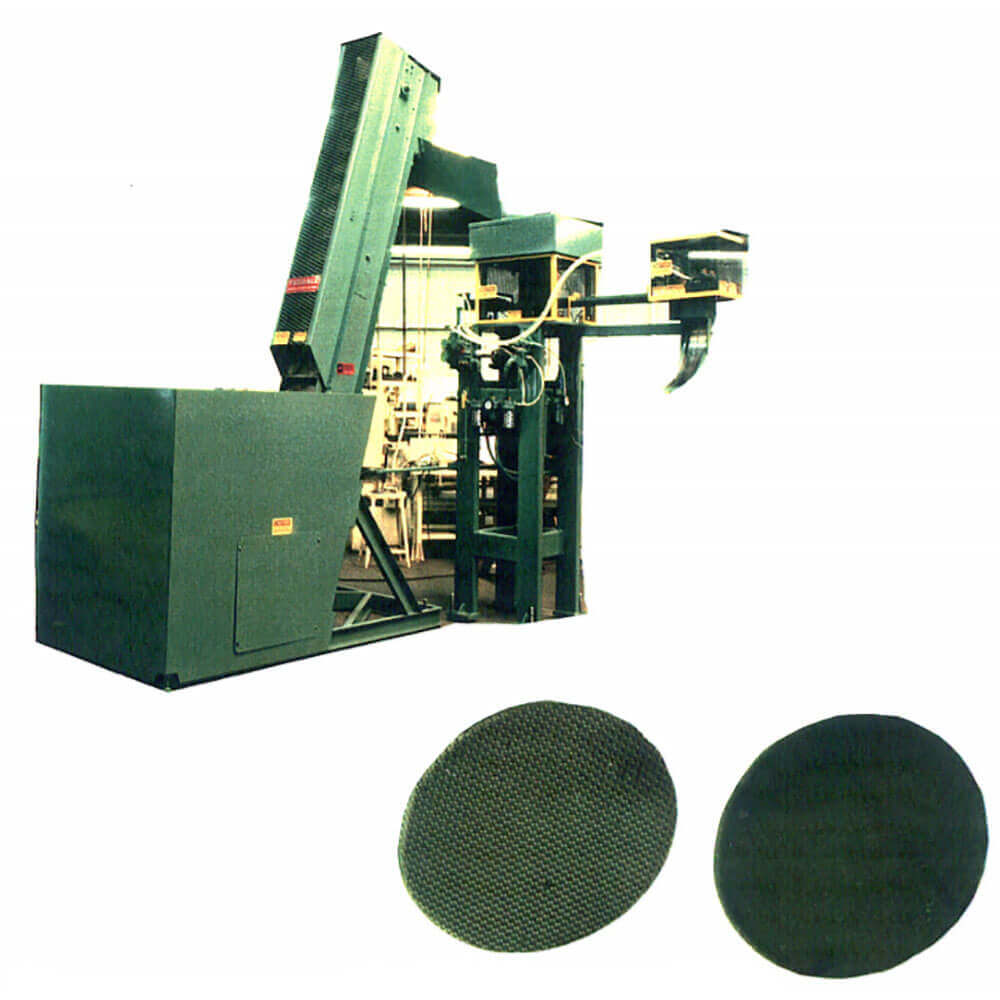

Feed from a random loaded floor mounted hopper, embossed steel discs 4.094″ DIA. X .119″ thick the discs will be elevated from the hopper then discharged randomly into a collector funnel falling into a vertical face to face stack, then one disc at a time will be stripped from the stack and transferred diameter to diameter to a surface detection device controlling the orienter thus orienting each disc embossed side up and discharging at a height of 56″ above the floor to an in-line forming press at a rate of 60 per minute.
12″ wide elevator belt, 20 CU. FT. Hopper.
DWG. P 7560 R 1

WIDTH

12" wide elevator belt

FEED RATE

60 per minute
