CASE STUDY
10115: PROJECT FEEDING STEERING PINION FORGINGS INTO MULTI-SPINDLE CHUCKER

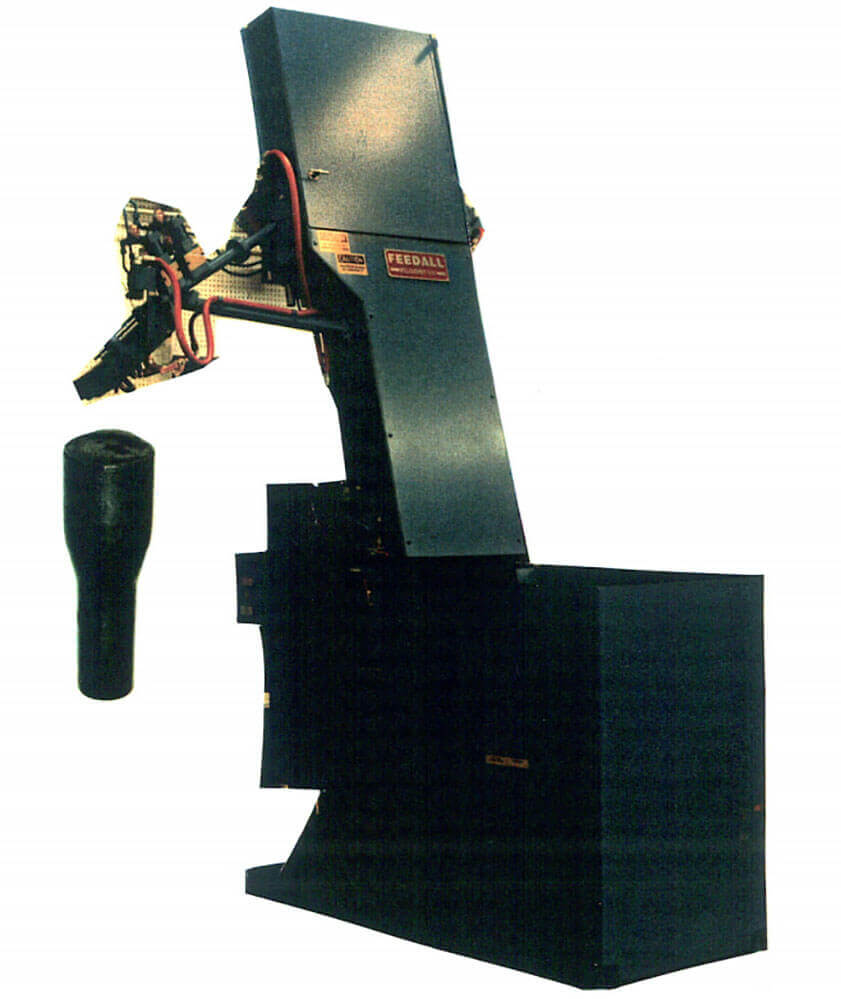

Feedall Model
Model 2400 D
APPLICATION
Feed from a random loaded floor mounted hopper, steering pinion forgings. The pinions will be oriented end to end then escaped one at a time hanging into a load chute of a new Britton turning machine at a rate of 8 to 12 per hour at a height of 60″ above the floor.
7 1/2″ wide elevator belt, 12 CU. FT. hopper. DWG. P 6806
WIDTH
7 1/2" wide elevator beltFEED RATE
8 to 12 per hour
